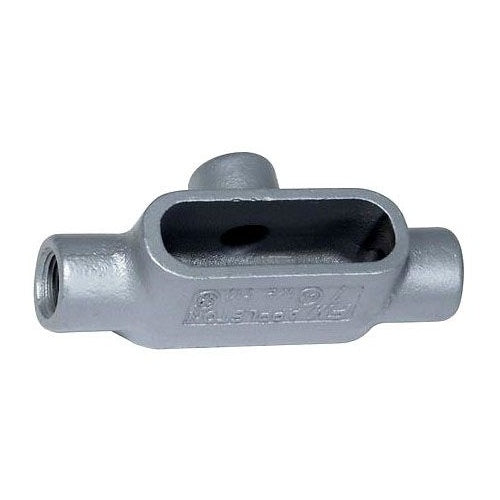

Appleton T107 4" T-Type Conduit Body

Product Specifications

• UPC: 78138150717
• Size: 14.31 Inch L x 6.94 Inch W x 5.38 Inch H
• Installation: Threaded
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron (Body), Neoprene (Gasket), Stainless Steel Cover (Screw)
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 244 Cu Inch
• Catalog Number: T107
• Brand Name: Unilet[R], FM7[TM]
• Access Opening: Side
• Configuration: T
• Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 4 Inch
• Catalog Description: FM7 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 4 IN, FORM: 7, LENGTH: 14.31 IN, WIDTH: 6.94 IN, HEIGHT: 5.38 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAP
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 14.31 Inch Length X 6.94 Inch Width X 5.38 Inch Height Size; Imc/Rigid Conduit Used on; 4 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Side Access Opening; FM7[TM] Brand; Wire Size (3) 3/0 AWG; Capacity 244 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381507172
• SKU Name: app t107
