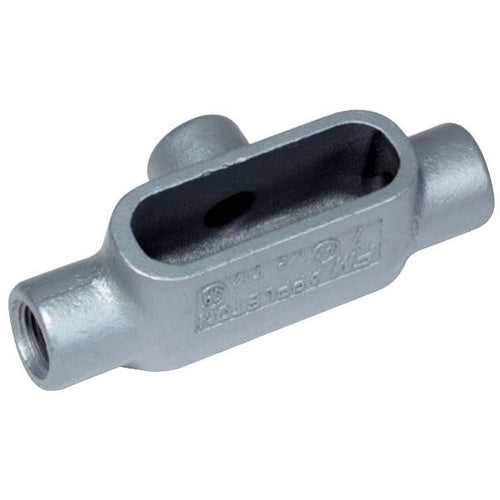

Appleton T28 3/4" T-Type Conduit Body

Overview

Appleton T28 3/4" T-Type Conduit Body

Product Specifications

• UPC: 78138174432
• Hub Size: 3/4 Inch
• Size: 6.56 Inch Length x 2.5 Inch Width x 2 Inch Height
• Installation: Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Gray Iron Alloy (Body), Neoprene (Gasket), Stainless Steel (Screw)
• Form Type: Form 8
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 10 Cubic Inch; Application Pulling Fitting, Conduit System, Splicing, Conduit Run, Branch Run, Conductor Maintenance; Applicable Standard NEMA FB-1
• Catalog Number: T28
• Brand Name: Appleton
• Model: T
• Access Opening: Side
• Configuration: T
• Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Gray Cast Iron Alloy
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 8, LENGTH: 6.56 IN, WIDTH: 2-1/2 IN, HEIGHT: 2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONN
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 6.56 Inch Length X 2.5 Inch Width X 2 Inch Height Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 8 Form Type; Side Access Opening; FM8[TM] Brand; Wire Size (3) 6 AWG; Capacity 10 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381744324
• SKU Name: app t28
