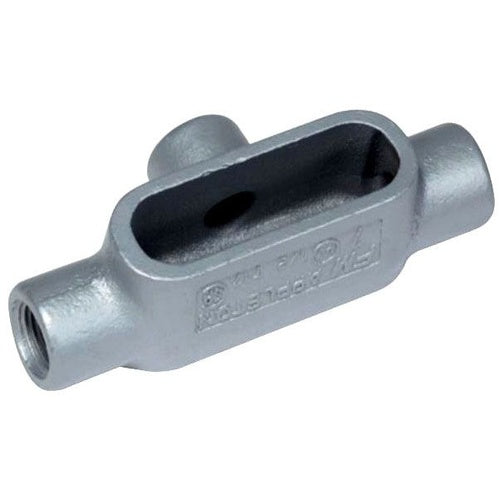

Appleton T38 1" T-Type Conduit Body

Overview

Appleton T38 1" T-Type Conduit Body

Product Specifications

• UPC: 78138174433
• Size: 7.56 Inch Length x 3.22 Inch Width x 2.28 Inch Height
• Installation: Threaded
• Material: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Cast Grayloy-Iron
• Form Type: Form 8
• Approval: UL 514A/B, CSA C22.2, NEC
• Used On: IMC/Rigid Conduit
• Additional Information: Enclosure Rating Class I Div 2; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductors for Maintenance,
• Catalog Number: T38
• Brand Name: FM8[TM]
• Access Opening: Tee Side
• Configuration: T
• Cover Type: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Cast Grayloy-Iron/Zinc Electroplate Stamped Steel
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1 Inch
• Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 1 IN, FORM: 8, LENGTH: 7.56 IN, WIDTH: 2.78 IN, HEIGHT: 2.28 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONN
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 7.56 Inch Length X 2.78 Inch Width X 2.28 Inch Height Size; Imc/Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 8 Form Type; Side Access Opening; FM8[TM] Brand; Wire Size (3) 4 AWG; Capacity 15.5 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381744331
• SKU Name: app t38

Resources

• Manufacturer Spec Sheet
