Overview

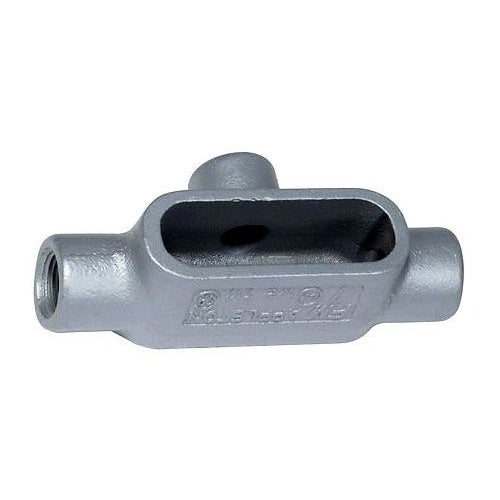

Appleton T67 2" Conduit Body

Product Specifications

• UPC: 78138150712
• Capacity: 50 Cubic Inch
• Enclosure: Class I Div 2
• Material: Grayloy Iron (Body), Stainless Steel (Screw)
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated
• Size: 9.19 Inch Length x 4.13 Inch Width x 3.13 Inch Height
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 7; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: T67
• Brand Name: Appleton
• Model: T
• Configuration: T
• Hub Size: 2 Inch
• Number Of Hubs: 3
• Hub Location: Tee
• Access Opening: Side
• Catalog Description: FM7 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 2 IN, FORM: 7, LENGTH: 9.19 IN, WIDTH: 4.13 IN, HEIGHT: 3.13 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPER
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 9.19 Inch Length X 4.13 Inch Width X 3.13 Inch Height Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Side Access Opening; FM7[TM] Brand; Wire Size (3) 2 AWG; Capacity 50 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381507127
• SKU Name: app t67
