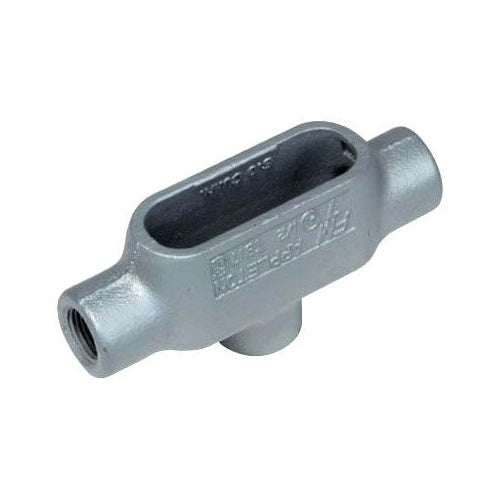

Appleton TB47SA 1-1/4" Aluminum TB-Type Conduit Body

Overview

Appleton TB47SA 1-1/4" Aluminum TB-Type Conduit Body

Product Specifications

• UPC: 78138160108
• Size: 7.44 Inch L x 2.19 Inch W x 3.31 Inch H
• Installation: Threaded
• Material: Epoxy Powder Coated Copper Free Cast Aluminum Body, Neoprene Gasket, Stainless Steel Cover Screw
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Capacity 20 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conducto
• Catalog Number: TB47SA
• Brand Name: Unilet[R], FM7[TM]
• Access Opening: Back
• Configuration: TB
• Cover Type: Epoxy Powder Coated Copper Free Cast Aluminum
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1-1/4 Inch
• Catalog Description: FM7 UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 1-1/4 IN, FORM: 7, LENGTH: 7.44 IN, WIDTH: 2.19 IN, HEIGHT: 3.31 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR USE WITH RIGID STEEL, RIGID ALUMINUM CONDUIT AND IMC
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 7.44 Inch Length X 2.19 Inch Width X 3.31 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Wire Size (3) 3 AWG; Capacity 20 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381601085
• SKU Name: app tb47sa

Resources

• Manufacturer Spec Sheet
