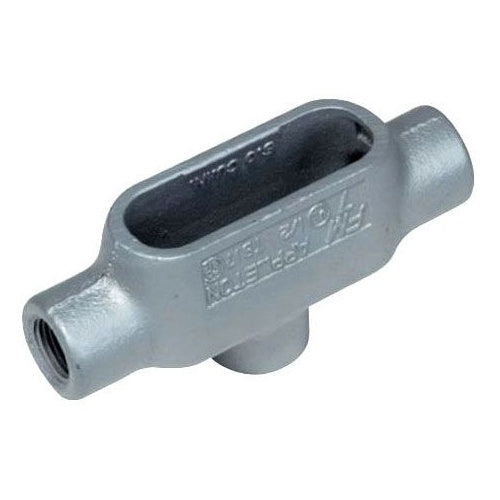

Appleton TB58 1-1/2" Conduit Body

Overview

Appleton TB58 1-1/2" Conduit Body

Product Specifications

• UPC: 78138174443
• Capacity: 38.5 Cubic Inch
• Enclosure: Class I Div 2, NEMA 3R
• Material: Copper-Free Aluminum (Body), Stamped Copper-Free Aluminum (Cover), Stainless Steel (Screw), Neoprene (Gasket)
• Finish: Natural (Body/Cover/Screw)
• Size: 10.38 Inch Length x 4.03 Inch Height
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 8; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Wet Location, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: TB58
• Brand Name: FM8[TM]
• Model: TB
• Configuration: TB
• Hub Size: 1-1/2 Inch
• Number Of Hubs: 3
• Hub Location: Tee
• Access Opening: Back
• Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 8, LENGTH: 10.38 IN, HEIGHT: 4.03 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: T
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 10.38 Inch Length X 4.03 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 8 Form Type; Back Access Opening; FM8[TM] Brand; Wire Size (3) 1/0 AWG, (3) 1 AWG; Capacity 44 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381744430
• SKU Name: app tb58
