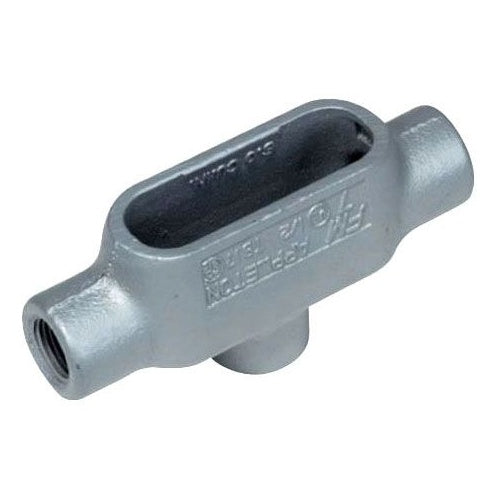

Appleton TB68 2" Conduit Body

Overview

Appleton TB68 2" Conduit Body

Product Specifications

• UPC: 78138174444
• Size: 12.38 Inch L x 4.81 Inch H
• Installation: Threaded
• Material: Electro Zinc Plated Dichromate Epoxy Powder Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Cover Screw
• Form Type: Form 8
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Capacity 105 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conduct
• Catalog Number: TB68
• Brand Name: Unilet[R], FM8[TM]
• Access Opening: Back
• Configuration: TB
• Cover Type: Electro Zinc Plated Dichromate Epoxy Powder Coated Gray Cast Iron Alloy
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 2 Inch
• Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 2 IN, FORM: 8, LENGTH: 12.38 IN, HEIGHT: 4.81 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPER
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 12.38 Inch Length X 4.81 Inch Height Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 8 Form Type; Back Access Opening; FM8[TM] Brand; Wire Size (3) 4/0 AWG, (3) 3/0 AWG; Capacity 105 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381744447
• SKU Name: app tb68
