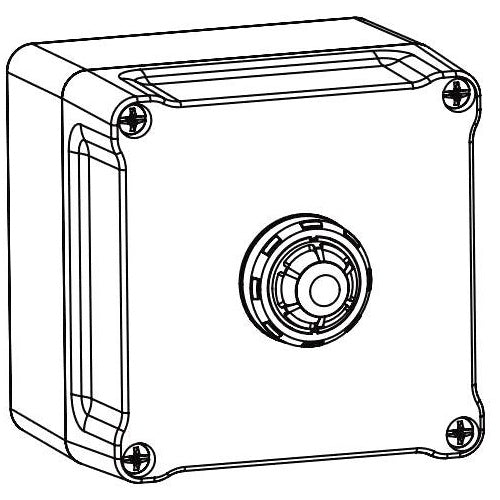

Appleton U21W2PG Polyester Control Station

Overview

Appleton U21W2PG Polyester Control Station

Product Specifications

• Catalog Description: PILOT LIGHT CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 12 TO 254 VAC AT 50/60 HZ, 12 TO 60 VDC, LAMP TYPE LED, COLOR GREEN, NUMBER OF PILOT LIGHTS 1, HUB SIZE (2) M20, ENCLOSURE MATERIAL BLACK FINISHED FIBERGLASS REINFORCED POLYESTER, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.72 INCH W X 3.58 INCH D X 4.72 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT, WEIGHT 2.2 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; Green Color; (2) M20 Hub Size; Black Fiberglass Reinforced Polyester Enclosure Material; UL 50, Can/Csa C22.2 Approval; 12/254 Volt AC 50/60 Hertz, 12/60 Volt DC Voltage Rating; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, NEMA 4X, IP66 Enclosure; 1 Pilot Light(S); UNICODE[TM] 2 Brand; Mounting Type DIN Rail; Temperature Rating -67 to 140 Deg F (Ambient), 167 Deg F (Surface); Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (1) Brass Earth Continuity Plate, (1) Blanking Plug, (1) Cable Gland, Brass Insert; Applic
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pilot Light Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381261999
• SKU Name: app u21w2pg

Resources

• Manufacturer Spec Sheet
