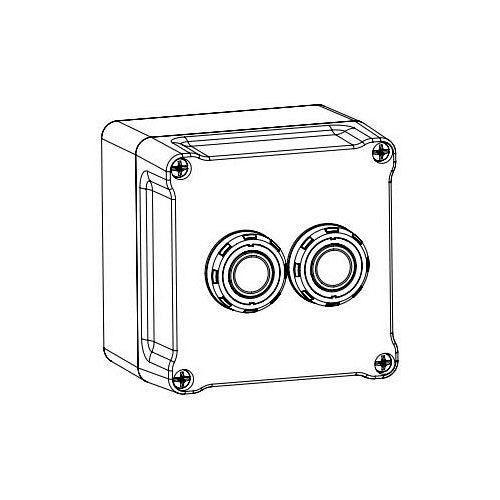

Appleton U21W4A5A9 Polyester Control Station

Product Specifications

• Catalog Description: PUSHBUTTON CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO-1NC, HUB SIZE (2) M25, ENCLOSURE MATERIAL BLACK FINISHED FIBERGLASS REINFORCED POLYESTER, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.72 INCH W X 3.58 INCH D X 4.72 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MOMENTARY, RAIL MOUNT, WEIGHT 2.43 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 1NO-1NC Contact Configuration; (2) M25 Hub Size; Black Fiberglass Reinforced Polyester Enclosure Material; UL, CSA (Canada and Us), Can/Csa C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, NEMA 4X, IP66 Enclosure; 10 Amp Current Rating; UNICODE[TM] 2 Brand; Operation Type Twin Momentary; Mounting Type DIN Rail; Operator Color Green and Red; Ambient Temperature Rating -67 to 140 Deg F; Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (1) Brass Earth Continuity Plate, (1) Blankin
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381262163
• SKU Name: app u21w4a5a9
