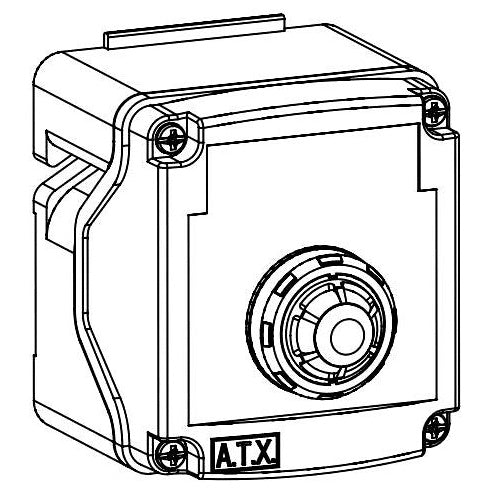

Appleton U41W2PY Polyamide Control Station

Product Specifications

• Catalog Description: PILOT LIGHT CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 12 TO 254 VAC AT 50/60 HZ, 12 TO 60 VDC, LAMP TYPE LED, COLOR YELLOW, NUMBER OF PILOT LIGHTS 1, HUB SIZE (2) M20, ENCLOSURE MATERIAL BLACK FINISHED POLYAMIDE, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK09, APPROVAL CE, IEC, OVERALL SIZE 3.54 INCH W X 1.15 INCH D X 4.09 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT, WEIGHT 1.06 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; Yellow Color; (2) M20 Hub Size; Black Polyamide Enclosure Material; 12/254 Volt AC 50/60 Hertz, 12/60 Volt DC Voltage Rating; IP66/IK10 Enclosure; 1 Pilot Light(S); UNICODE[TM] 2 Brand; Mounting Type DIN Rail; Temperature Rating -4 TO131 Deg F (Ambient), 167 Deg F (Surface); Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (2) M20 Bottom Clearance Entry, (1) Black Polyamide Blanking Plug, (1) Black Polyamide Cable Gland, (2) Locknut, Brass Insert; Application Hazardous Location; Applicable Standard ATEX
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pilot Light Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381256681
• SKU Name: app u41w2py
