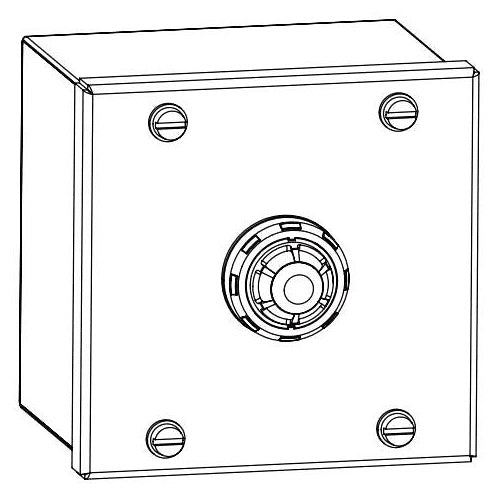

Appleton U61W2PR Stainless-Steel Control Station

Overview

Appleton U61W2PR Stainless-Steel Control Station

Product Specifications

• Catalog Description: PILOT LIGHT CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 12 TO 254 VAC AT 50/60 HZ, 12 TO 60 VDC, LAMP TYPE LED, COLOR RED, NUMBER OF PILOT LIGHTS 1, HUB SIZE (2) M20, ENCLOSURE MATERIAL 316L STAINLESS STEEL, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 5 INCH W X 3.5 INCH D X 6.3 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; Red Color; (2) M20 Hub Size; Natural 316L Stainless Steel Enclosure Material; UL 50, Can/Csa C22.2 Approval; 12/254 Volt AC 50/60 Hertz, 12/60 Volt DC Voltage Rating; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, NEMA 4X, IP66 Enclosure; 1 Pilot Light(S); UNICODE[TM] 2 Brand; Mounting Type DIN Rail; Temperature Rating -58 to 158 Deg F (Ambient), 176 to 203 Deg F (Surface); Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (1) Brass Earth Continuity Plate, (1) Blanking Plug, (1) Cable Gland, Brass Insert; Application Hazardous Location; Applicable Standard Nec/Cec, Atex/Iec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pilot Light Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381258463
• SKU Name: app u61w2pr

Resources

• Manufacturer Spec Sheet
