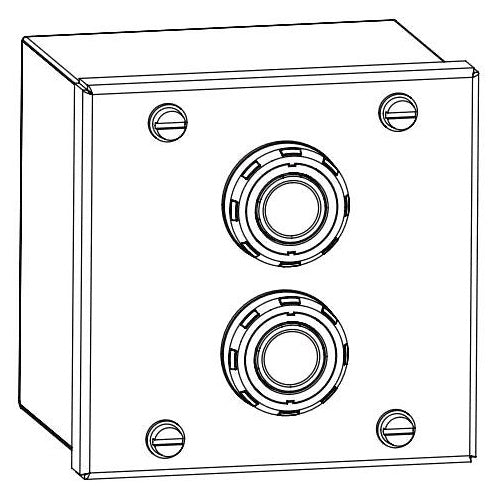

Appleton U61X3A3A3 Stainless-Steel Control Station

Overview

Appleton U61X3A3A3 Stainless-Steel Control Station

Product Specifications

• UPC: 78138125929
• Enclosure Material: Stainless Steel
• Enclosure: Class I Div 2 Group A B C D, Class II Div 2 Group F G, NEMA 4X, IP66
• Additional Information: Mounting Type DIN Rail; Application Local and Motor Control Station
• Catalog Number: U61X3A3A3
• Brand Name: UniCode[R]
• Type: Feed Through
• Legend: Start/Stop/Emergency Stop
• Contact Configuration: 1NO-1NC, Momentary
• Operator Type: Front Operated Pushbutton
• Box Type: Two Gang
• Hub Size: 3/4 Inch
• Catalog Description: PUSHBUTTON CONTROL STATION, TYPE FEED THROUGH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 2NO-2NC, HUB SIZE 3/4 INCH, ENCLOSURE MATERIAL 316L STAINLESS STEEL, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 5 INCH W X 3.82 INCH D X 6.3 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MOMENTARY, RAIL MOUNT
• Category: Control Station Complete Assemblies
• Full Technical Description: Feed-Through Type; 1NO-1NC Contact Configuration; (2) 3/4 Inch Hub Size; Natural 316L Stainless Steel Enclosure Material; UL, CSA (Canada and Us), Can/Csa C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 2 Group A B C D, Class II Group F G, Class II 2 Gd, Class I Zone 1, Class III, Zone 1 and 2/21 and 22, IP66/IK10 Enclosure; 10 Amp Current Rating; UNICODE[TM] 2 Brand; Operation Type Twin Momentary; Operator Color Green and Red; Ambient Temperature Rating -40 to 131 Deg F; Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (1) Brass Earth Continuity Plate, (1) Blanking Plug, (1) Cable Gland; Application Hazardous Location; Applicable Standard Nec/Cec, Atex/Iecex, Ansi/Isa/Iec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381259293
• SKU Name: app u61x3a3a3
