Overview

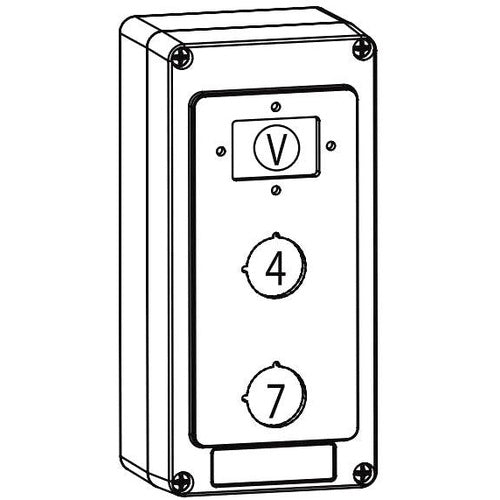

Appleton U83W323 Size-3 Aluminum Control Station Enclosure

Product Specifications

• Catalog Description: CONTROL STATION ENCLOSURE, TYPE PRE-DRILLED, HEIGHT 9.06 INCH, WIDTH 4.33 INCH, DEPTH 3.74 INCH, NUMBER OF DEVICE HOLES 3, DEVICE HOLE LOCATION 1-ROW VERTICAL, MATERIAL ALUMINUM, COLOR GRAY, FINISH EPOXY POWDER COATED, ENCLOSURE ZONE 1 AND 2 TO 21 AND 22, IP66, MOUNTING RAIL MOUNT, APPROVAL ATEX/IEC, INCLUDES (1) WHITE SELF-ADHESIVE LAMINATED PLASTIC NAMEPLATE (BLACK LETTERING), CLEARANCE ENTRIES, APPLICATION HAZARDOUS LOCATION, VOLUME 256.3 CU INCH, WEIGHT 3.97 LB
• Category: Control Station Enclosures
• Full Technical Description: 1-Bottom Type; Gray Epoxy Powder Coated Aluminum (Body/Cover) Material; 4.33 Inch Width X 3.74 Inch Depth X 9.06 Inch Height Size; Unicode 2 Pre-Drilled Aluminum Control Station Used on; M25 Hub Size; 1 Hub(S); UL, CSA (Canada and Us), Can/Csa C22.2 Approval; IP66/IK10 Enclosure; 3-Device Construction; UNICODE[TM] 2 Brand; Includes (1) White Self-Adhesive Laminated Plastic Name Plate (Black Lettering), Clearance Entry; Application Power/Chemical/Petrochemical Plant, Various Industrial
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39121303
• UPC 12 Digit: 781381260091
• SKU Name: app u83w323

Resources

• Manufacturer Spec Sheet
