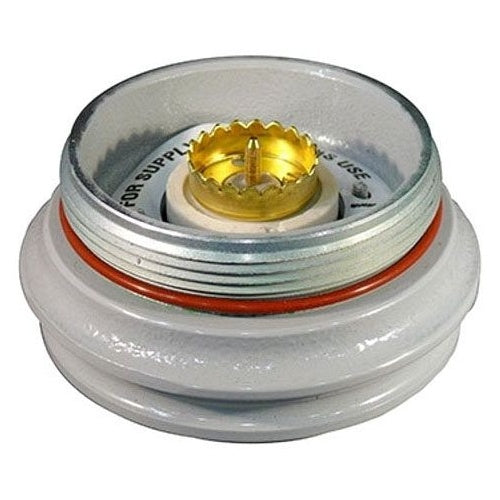

Appleton VAD-2M Adapter Socket

Overview

Appleton VAD-2M Adapter Socket

Product Specifications

• UPC: 78138144183
• Catalog Number: VAD-2M
• Brand Name: Unilet[R], V-51[R]
• Type: Adapter
• Used On: Incandescent Luminaire
• Additional Information: Lamp Wattage 150 to 300 W; Material Malleable Iron
• Catalog Description: APPLETON UNILETS ADAPTER/SOCKET, VOLTAGE RATING: 150 V, BASE: MEDIUM, MATERIAL: MALLEABLE IRON, LAMP TYPE: 150 - 300 WTT A21 MEDIUM INCANDESCENT, FINISH: ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT, STANDARD: NEC: CLASS I, DIVISION 2, GROUPS A, B, C, D, CSA CERTIFIED: CLASS I, DIVISION 2, GROUPS A, B, C, D, CLASS II, DIVISIONS 1 AND 2, GROUPS E, F, G, CLASS III, ENCLOSURE 3R, UL 1598, UL 844, UL E10444, C22.2 NO. 250, C22.2 NO. 137, CSA 025428, FOR V-51 SERIES ENCLOSED AND GASKETED LIGHTING FIXTURES
• Category: Lighting Accessories
• Full Technical Description: Adapter/Socket, PS30 Type; V-51 Incandescent Luminaire Used on; Lamp Wattage 200 Watt; Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Adapter), Natural Porcelain (Socket), Brass (Screw Shell); Applicable Standard Nec/Cec, UL 844/1598, CSA C22.2
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Indoor Lighting Fixture Accessories
• Unspsc: 39111817
• UPC 12 Digit: 781381441834
• SKU Name: app vad2m

Resources

• Manufacturer Spec Sheet
