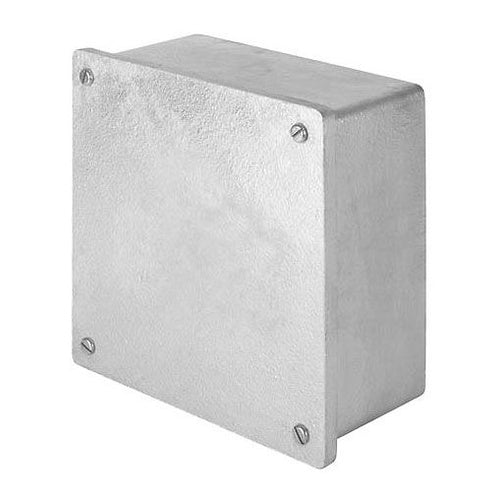

Appleton W-YL-080806 Iron Junction Box & Cover

Overview

Appleton W-YL-080806 Iron Junction Box & Cover

Product Specifications

• UPC: 78138186553
• Depth In Inch: 6
• Material: CAST IRON
• Finish: HOT DIP GALVANIZED
• Enclosure: NEMA 3R/4
• Mounting: SURFACE
• Cover Type: OVERLAPPING GASKETED SCREW ON
• Service Type: OUTDOOR
• Approval: UL 50, UL 514A
• Height In Inch Uom: in
• Width In Inch Uom: in
• Catalog Number: W-YL-080806
• Depth In Inch Uom: in
• Additional Information: COVER SCREW MATERIAL STAINLESS STEEL; GASKET MATERIAL NEOPRENE; WALL THICKNESS 1/4 INCH
• Brand Name: Appleton.
• Model: WYL
• Height: 8 INCH
• Height In Inch: 8
• Width: 8 INCH
• Width In Inch: 8
• Depth: 6 INCH
• Catalog Description: CAST JUNCTION BOX TYPE UNFLANGED HEIGHT 8 INCH WIDTH 8 INCH DEPTH 6 INCH MATERIAL CAST IRON BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW FINISH HOT DIP GALVANIZED ENCLOSURE NEMA 1/2/3/3R/3S/4/5/6/6P/12/12K/13 MOUNTING SURFACE COVER TYPE GASKETED SCREW-ON SERVICE TYPE INDOOR/OUTDOOR APPROVAL UL 50/50E/514A, CSA C22.2 WALL THICKNESS 0.3125 INCH
• Category: Cast Boxes
• Full Technical Description: Unflanged Type; Cast Iron Material; Hot Dip Galvanized Finish; 8 Inch; 6 Inch; UL, CSA Approval; Surface Mounting; NEMA 1/2/3/3R/3S/4/5/12/12K/13 Enclosure; Constructional Feature Water Tight/Rain Tight/Dust Tight; Length 8 Inch; Applicable Standard Nec/Cec; WYL Model
• Made In Usa: Yes
• Manufacturer: APPLETON ELECTRIC COMPANY
• Sub Category: Pull/Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 781381865531
• SKU Name: app wyl080806
