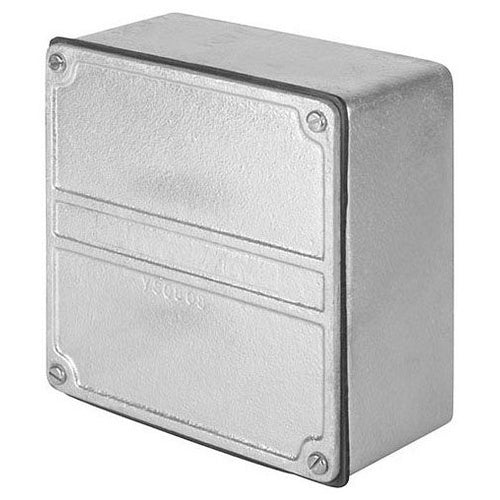

Appleton W-YS-121208 Surface Mounting Iron Junction Box

Overview

Appleton W-YS-121208 Surface Mounting Iron Junction Box

Product Specifications

• UPC: 78138187109
• Depth: 8 INCH
• Depth In Inch: 8
• Material: CAST IRON
• Finish: HOT DIP GALVANIZED
• Enclosure: NEMA 3R/4
• Mounting: SURFACE
• Cover Type: FLAT GASKETED SCREW ON
• Service Type: OUTDOOR
• Approval: UL 50, UL 514A
• Height In Inch Uom: in
• Catalog Number: W-YS-121208
• Width In Inch Uom: in
• Depth In Inch Uom: in
• Additional Information: COVER SCREW MATERIAL STAINLESS STEEL; GASKET MATERIAL NEOPRENE; WALL THICKNESS 5/16 INCH
• Brand Name: Appleton.
• Model: WYS
• Type: UNFLANGED
• Height: 12 INCH
• Height In Inch: 12
• Width: 12 INCH
• Width In Inch: 12
• Catalog Description: CAST JUNCTION BOX, TYPE UNFLANGED, HEIGHT 12 INCH, WIDTH 12 INCH, DEPTH 8 INCH, MATERIAL CAST IRON BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FINISH HOT DIP GALVANIZED, ENCLOSURE NEMA 1/2/3/3R/3S/4/5/6/6P/12/12K/13, MOUNTING SURFACE, COVER TYPE FLAT, GASKETED SCREW-ON, SERVICE TYPE INDOOR/OUTDOOR, APPROVAL UL 50/50E/514A, CSA C22.2, WALL THICKNESS 0.3125 INCH
• Category: Cast Boxes
• Full Technical Description: Unflanged Type; Cast Iron Material; Hot Dip Galvanized Finish; 12 Inch; 8 Inch; UL, CSA Approval; Surface Mounting; NEMA 1/2/3/3R/3S/4/5/12/12K/13 Enclosure; Constructional Feature Water Tight/Rain Tight/Dust Tight; Length 12 Inch; Applicable Standard Nec/Cec; WYS Model
• Made In Usa: Yes
• Manufacturer: APPLETON ELECTRIC COMPANY
• Manufacturer Brand: Appleton Electric
• Sub Category: Pull/Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 781381871099
• SKU Name: app wys121208

Resources

• Manufacturer Spec Sheet
