Product information
Overview

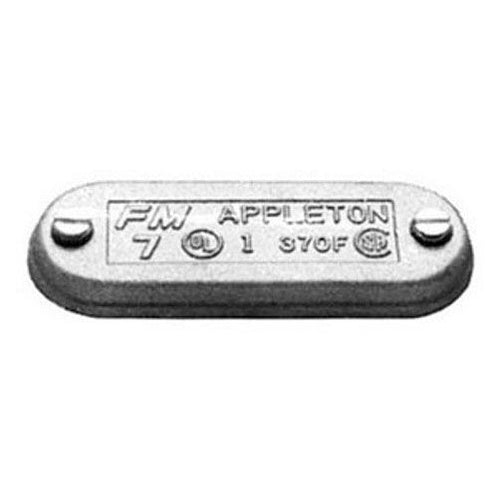

Appleton 170FG FM7 Form 7 Conduit Body Cover with Integral Gasket, 1/2 Inch
Product Specifications
- Catalog Description: FM7 Unilets Form-In-Place Clip Cover with Integral Gasket, 1/2 Inch Hub Size, Form 7, Screw-In Mounting, Cast Grayloy Iron, Triple-Coat Gray Finish
- Category: Conduit Cover
- Full Technical Description: Clip Cover with Integral Form-In-Place Urethane Gasket; Corrosion and Weather Resistant Type; 1/2 Inch Trade Size; Form 7 Form Type; Screw-In Mounting; Cast Grayloy Iron Material; Zinc Electroplated, Chromate, and Epoxy Powder Coated Triple-Coat Finish; Gray Color; FM7 and Wedge-Lok Brand Design; Unilet Brand Reference; Enclosure Rating Class I Division 2 and NEMA 3R; Operating Temperature Rating -65 to 302 Degrees F; UL 514A/B and CSA C22.2 Approved; Used on IMC and Rigid Conduit; Suitable for Commercial, Industrial, Hazardous, and Wet Location Applications; Applicable Standard NEC/CEC
- Made In Usa: Yes
- Manufacturer: Appleton Electric
- Manufacturer Brand: Appleton Electric
- Sub Category: Conduit Body Cover
- Unspsc: 39131708
- UPC 12 Digit: 781381167710
- SKU Name: APP170FIG
