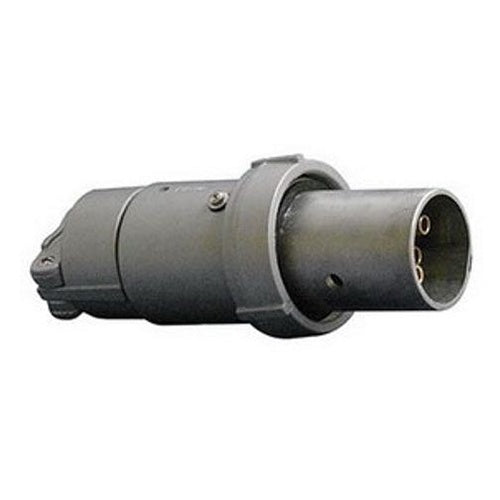

Appleton ACP3034BC 30Amp Plug 3W-4P Style

Overview

Appleton ACP3034BC 30Amp Plug 3W-4P Style

Product Specifications

• UPC: 78138144042
• Number Of Wires: 3
• Grounding Style: 2, Shell, Extra Pole
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.25 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Approval: UL 1682/1689/50E, CSA C22.2
• Additional Information: Contact Material Brass; Enclosure Rating NEMA 3/3R/4/4X
• Catalog Number: ACP3034BC
• Brand Name: Appleton
• Model: ACP
• Type: Positive Polarized, Clamping Ring, Compressor, Motor Generator Unit, Pump, Welding
• Constructional Feature: Weatherproof
• Voltage Rating: 600 Volt AC 3-Phase at 50 to 400 Hertz, 250 Volt DC
• Current Rating: 30 Amp
• Number Of Poles: 4
• Catalog Description: POWERTITE GROUNDING STYLE 2 METALLIC CLAMPING RING PLUG, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 10 - 6 AWG (BUILDING), 10 - 8 AWG (EXTRA FLEX), AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE:
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Motor Generator Set, Pump, Lighting System, Conveyor, Heater, Air Conditioner Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.125 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 894/1010/1203/1682, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 4 Pole(S); Weatherproof; 2, Shell Grounding Style; POWERTITE[TM] Brand; Power Rating 30 HP; Contact Material Brass; Enclosure Rating Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7CD/9FG; Applicable Standard Nec/Cec; ACP Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381440424
• SKU Name: appleton acp3034bc
