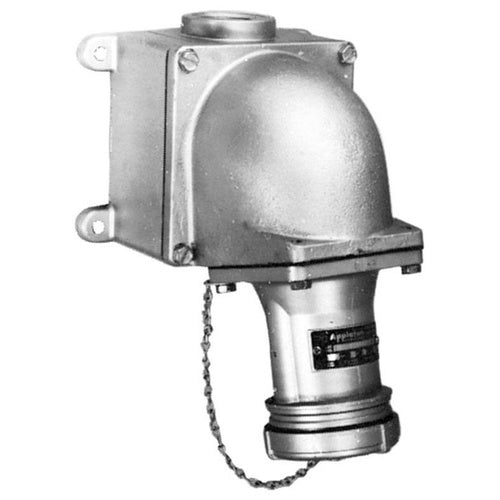

AE1042 Appleton Plugs & Receptacles, 100A AE RECEPT ASSY-FLIP 3W-4P

Product Specifications

• Full Technical Description: Pin and Sleeve Receptacle, Constructional Feature Weatherproof, Raintight, Voltage Rating 600 VAC/250 VDC, Current Rating 100 Ampere, Number of Poles 4, Number of Wires 3, Grounding Style 2, Shell, Extra Pole, Door Type Spring Door, Material Epoxy Powder
• Catalog Number: AE1042
• Manufacturer: Appleton
• Family Series: Appleton Plugs & Receptacles
• Connection Type: Receptacle
• Connection Description: Non-Fusible
• Current Rating: 100 A
• Voltage: 250 V, 600 V
• Number of Poles: 4
• Number of Wires: 3
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Wire Size Range: 3 AWG, 2 AWG, 1 AWG
• Material: Metallic
• Terminal Type: Pressure Wire
• Approvals: UL
• Comments: Shell and Extra Pole, Spring Door, Pressure Wire Terminals, Weatherproof, For Ordinary Locations
• Net Weight: 3.265 lbs
• Gross Weight: 3.75 lbs
