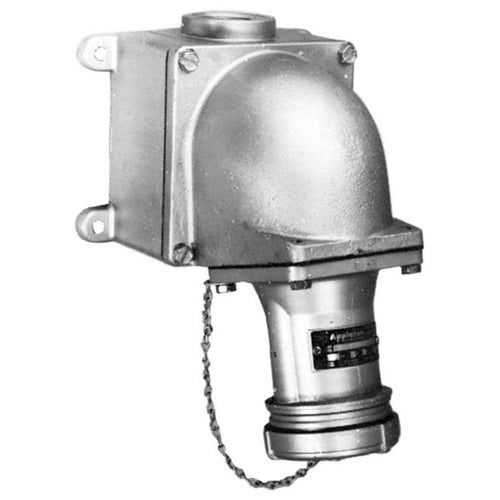

AE342 Appleton Plugs & Receptacles, AE Series, 30A AE RECEPT ASSY-FLIP 3W-4P

Product Specifications

• Catalog Number: AE342
• Manufacturer: Appleton
• Product Series: AE
• Family Series: Appleton Plugs & Receptacles, AE Series
• Full Technical Description: AE Series Grounding Style 2 Receptacle, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 14 - 8 AWG, Amperage Rating: 30 AMP, Voltage Rating: 600 VAC, 250 VDC, Material: Copperfree 4/10 Of 1 PCT Maximum Aluminum, Mounting: Box, Connection: Pressure
• Connection Type: Receptacle
• Connection Description: Straight
• Current Rating: 30 A
• Voltage: 600 V
• Number of Poles: 4
• Number of Wires: 3
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Wire Size Range: 14 AWG, 13 AWG, 12 AWG, 11 AWG, 10 AWG, 9 AWG, 8 AWG
• Material: Metallic
• Terminal Type: Crimp
• Approvals: UL
• Comments: Weather Proof Spring Door
• Net Weight: 0 lbs
• Gross Weight: 0 lbs
