Overview

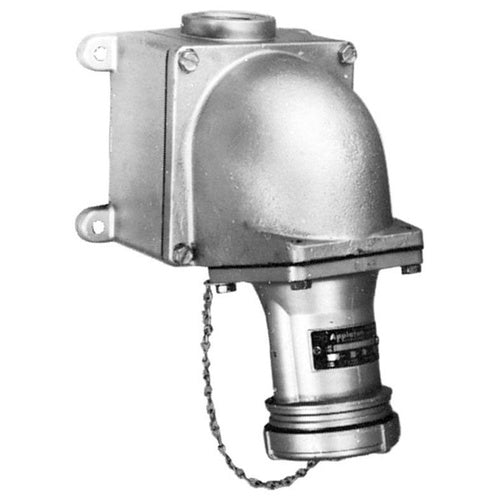

AE648 - 3W-4P RCPT

Product Specifications

• Full Technical Description: APP AE648 60A AE RECEPT ASSY-SCREW
• Catalog Number: AE648
• Manufacturer: Appleton
• UNSPSC: 39121406 - Electrical receptacles
• Amperage Rating: 60
• Connection: Pressure Wire Terminal
• Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum
• Number Of Wires: 3
• Poles: 4
• Voltage Rating: 600 VAC, 250 VDC
• Wire Size: 8 - 4
• Product Type: 60A Ae Recept Assy-Screw 3W-4P
• Special Features: Contacts exert constant pressure along the entire contact surface, providing electrical continuity;Fiber glass reinforced phenolic insulation blocks;For welders, generators, compressors, pumps, similar apparatus;Grounding style: shell and extra pole;Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking;Screw cap;Solid brass contacts with beryllium copper springs;Weatherproof
• UPC: 781381130004
• GTIN: 00781381130004
• Type: AE Series Grounding Style 2 Receptacle
• Carton: 1
• Package: 6
• Application: For AEP6462 Clamping Ring Plug
• Mounting: BOX
• Standard: UL 1682, UL 1686
