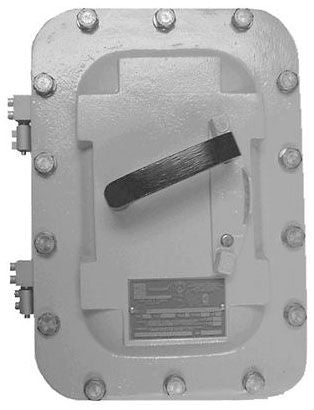

Appleton AEBB10036DS350 2.5 Disconnect Switch, 100 Amp, Explosionproof, Dust Ignitionproof, 3-Pole, Bolted/Hinged Cover, 600VAC/250VDC

Overview

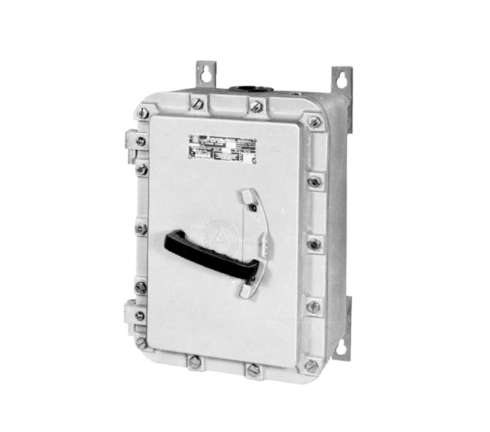

Appleton AEBB10036DS350 2.5 Disconnect Switch, 100 Amp, Explosionproof, Dust Ignitionproof, 3-Pole, Bolted/Hinged Cover, 600VAC/250VDC, Gray Epoxy Powder Coated Copper-Free Aluminum Enclosure

Product Specifications

• Brand: Appleton Electric
• Manufacturer: Appleton Electric
• Manufacturer Part Number: AEBB10036DS350
• Catalog Number: AEBB10036DS
• UPC: 781381848060
• Product Type: Explosionproof Disconnect Switch
• Sub-Category: Non-Fusible Disconnect Safety Switch
• Amperage Rating: 100 A
• Number of Poles: 3
• Voltage Rating: 600 VAC / 250 VDC
• Construction: Bolted, Hinged Cover
• Operator Type: External Handle
• Fuse Provision: Non-Fusible
• Hub Size: 2 Inch
• Hub Location: Top / Bottom
• Enclosure: Class I Div 1 & 2 Group B/C/D, Class II Div 1 & 2 Group E/F/G, Class III, NEMA 4/4X/7/9
• Enclosure Material: Gray Epoxy Powder Coated Copper-Free Aluminum
• Mounting Type: Foot Mounting
• Size: 11" W x 8.97" D x 20.5" H
• Approval: UL 1203, UL (Canada & US), CSA
• Application: Chemical Plants, Petrochemical Plants, Petroleum Refineries, Industrial Facilities
• Full Technical Description: Appleton AEBB10036DS350 Explosionproof Disconnect Switch; 100 Amp, 3-Pole, Non-Fusible, External Handle Operator; Gray Epoxy Powder Coated Copper-Free Aluminum Enclosure; Bolted/Hinged Cover; Hub Size 2 Inch (Top & Bottom); UL/CSA Approved; Class I Div 1 & 2 Group B/C/D, Class II Div 1 & 2 Group E/F/G, Class III, NEMA 4/4X/7/9; Voltage 600VAC / 250VDC; Designed for chemical plants, petrochemical, petroleum refineries, and industrial applications.
