Appleton aedb

Overview

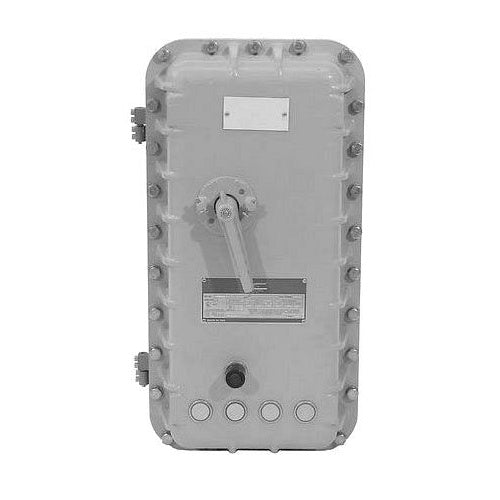

AEDB Dust-Ignitionproof Watertight Explosionproof Circuit Breaker Enclosure, 13.63 in W x 12.81 in D x 37.88 in H, NEMA 4/4X

Product Specifications

• Catalog Number: AEDB
• UPC / GTIN: 781381857581
• Manufacturer Brand: Appleton®
• UNSPSC: 39121331
• Features: Precision machined flame path between box and cover, O-ring gasket insures watertight integrity; Bolt on stainless steel slotted mounting feet; Stainless steel, captive Quad-LeadTM cover bolts are standard disengaged in 1-1/2 turns; Ground lug package and installation instructions for termination of ground wire enclosed; External operating handle with stops for limiting handle travel; Breaker operators can be locked in the On or Off position (up to 3 padlocks); External flange maximizes internal space; Standard outlets top and bottom for line and load wiring, plugged 1/2 in outlets top and bottom for breather and drain; Breakers mounted on a galvanized steel removable pan; Enclosures are designed to accept GE, Square DTM, Siemens and Cutler-Hammer B circuit breakers
• Country of Origin: United States of America | United States of America (the)
• Depth: 12.81 in
• Height: 37.88 in
• NEMA Rating: NEMA 4/4X
• Number of Outlets: 3
• Type: Dust-Ignitionproof Watertight Explosionproof
• Width: 13.63 in
