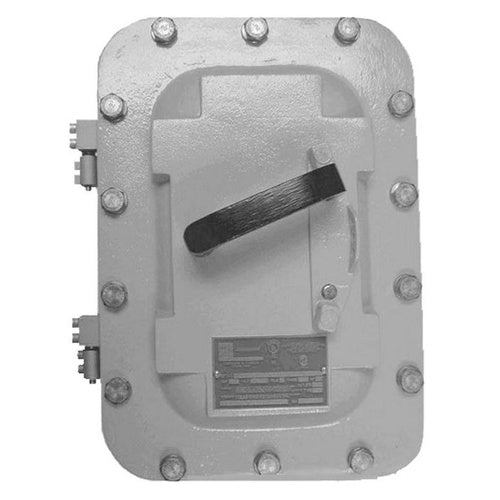

Appleton AEFB42635C 2P 350A 600V Enclosed Circuit Breaker

Product Specifications

• Part Number: AEFB42635C
• UPC: 78138185755
• UPC: 781381857550
• Current Rating: 350 AMPERE
• Interrupting Rating: 25000 AMPERE AT 600 VAC
• Number of Poles: 2
• Hub Size: (1) 4 INCH
• Hub Location: DEAD END
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Enclosure Material: COPPER FREE CAST ALUMINUM
• Enclosure Finish: GRAY EPOXY POWDER COATED
• Shaft/Handle Material: STAINLESS STEEL
• Approval: CSA C22.2
• Brand Name: Appleton[R]
• Model: AE
• Type: BOLTED ENCLOSURE
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, WATER TIGHT
• Breaker Type: CUTLER HAMMER, KD
• Trip Type: NON INTERCHANGEABLE
• Voltage Rating: 600 VAC, 125/250 VDC
• Full Technical Description: Bolted Enclosure Type; 3 Inch Hub Size; Copper-Free Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; 600 Volt AC, 125/250 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure; 25000 Amp at 600 Volt AC Interrupting Rating; 350 Amp Current Rating; 2 Pole(S); Explosionproof, Dust Ignitionproof, Water Tight; Gray Epoxy Powder Coated Enclosure Finish; Cutler Hammer, Kd Breaker Type; Non-Interchangeable Trip Type; Stainless Steel Shaft Shaft/Handle Material; Frame Rating 400 Amp; Enclosure Size 250 to
• Manufacturer: Appleton Electric
• UNSPSC: 39121601
