Product information
Overview

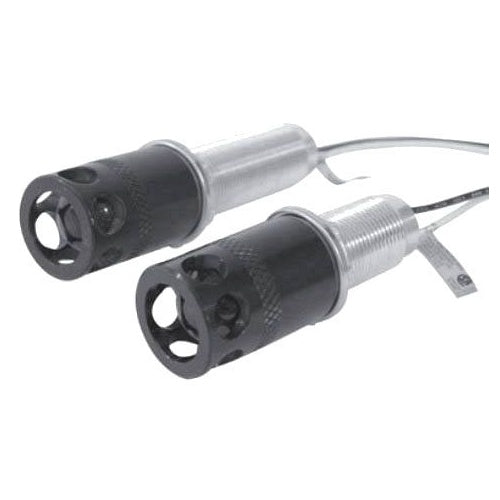

Appleton AEPLG1A 120V Amber Pilot Light
Product Specifications
- Part Number: AEPLG1A
- UPC: 78138191322
- UPC: 781381913225
- Additional Information: BARREL TYPE SHORT
- Brand Name: Appleton.
- Type: GUARDED, PIGTAIL
- Constructional Feature: EXPLOSION PROOF
- Lamp Input Type: 120 VAC/VDC
- Lens Color: AMBER
- Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
- Application: HAZARDOUS LOCATION
- Full Technical Description: Pigtail, Short Barrel, Guarded Type; Shot Blast Copper-Free Sand Cast Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; Hazardous Location Application; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG Enclosure; Explosionproof; 120 Volt AC/DC Lamp Input Type; Glass Lens Material; Amber Lens Color; Overall Length 3.73 Inch; Used on Acsew Control Operator; Applicable Standard Nec/Cec; AEPL Model
- Made in USA: Yes
- Manufacturer: Appleton Electric
- UNSPSC: 39121534
