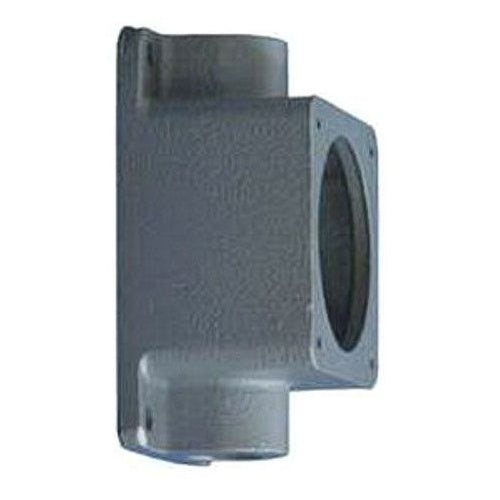

Appleton AERC33 Aluminum Mounting Unilet, 30A, 600VAC/250VDC, 1" Hub, Front-Opening, Weatherproof, For Pin & Sleeve Receptacles

Product Specifications

• Brand: Appleton
• Manufacturer: Appleton Electric
• Manufacturer Part Number (MPN): AERC33
• UPC: 78138122953
• Product Type: Pin & Sleeve Back Box / Mounting Unilet
• Series/Model: AE Series / AER
• Device Rating: 30 A
• Voltage Rating: 600 V AC / 250 V DC
• Hub Size: 1 Inch
• Number of Mounting Lugs: 4
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Constructional Feature: Weatherproof, Front-Opening
• Body Finish: Epoxy Powder Coat
• Dimensions: 3.38 in W x 2.5 in D x 5.31 in H
• Application: Welders, Generators, Compressors, Pumps, Shipping Docks, Ports, Ship-to-Shore Applications, Cellular Relay Stations
• Standards / Approvals: UL 1682/1686/50E, CSA C22.2
• Wire Size Compatibility: 14 to 8 AWG
• Catalog Description: AE Series Mounting Box, 2 Outlets, Copper-Free Aluminum, 1" Hub, 30A Pin & Sleeve Receptacles, Lugs Mounted, No Knockouts
• Full Technical Description: Front-opening aluminum mounting unit for use with 30A Powertite pin & sleeve receptacles. Epoxy powder-coated copper-free aluminum body, 1" hub, 600V AC / 250V DC device rating, weatherproof construction. Supports 14–8 AWG wiring, suitable for industrial, port, and heavy-duty applications. UL 1682/1686 and CSA approved.
• Category: Pin & Sleeve Devices
• UNSPSC: 39121303
