Overview

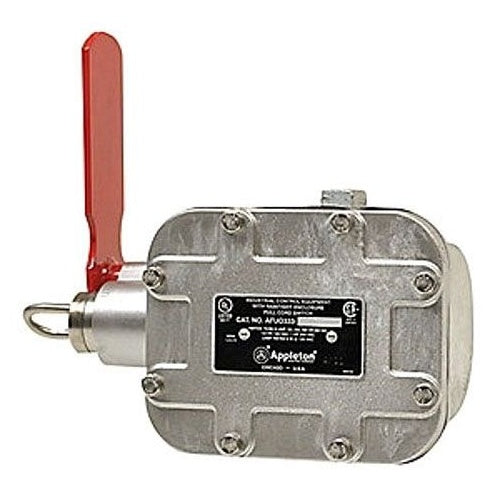

Appleton AFU033310 15A Single-End Left Emergency Cable Pull Switch, Feed-Through

Product Specifications

• Catalog Number: AFU033310
• UPC: 781381741071
• Full Technical Description: product type: emergency cable pull switch; series: AFU; operating style: single-end left; enclosure configuration: feed through; operator type: lever selector; required pull force: approximately 15 lb; contact configuration: normally open and normally closed double-break contacts; AC contact rating: 15 A at 120, 240, 480, and 600 VAC; DC contact rating: 0.8 A at 115 VDC and 0.4 A at 230 VDC; enclosure material: cast aluminum; enclosure ratings: NEMA 3, 4, 4X, and 12; operating-temperature range: -44 to 66 degrees C; indicator: flag arm; application: emergency shutdown and control of motor-driven conveyors, material-handling equipment, production machinery, and compatible magnetic motor-starter control circuits
• Manufacturer: Emerson
• Manufacturer Brand: Appleton
• Unspsc: 39122216
