Product information
Overview

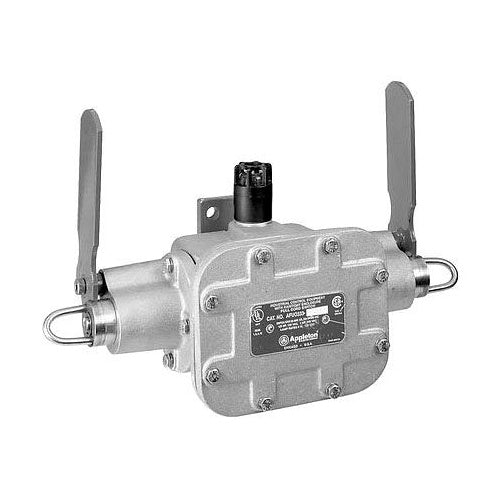

AFUX033344 Appleton Switches, AFUX Series, PULL CORD SW-HAZ-D2S 25 SPDT
Product Specifications
- Catalog Number: AFUX033344
- Manufacturer: Appleton
- Family Series: Appleton Switches, AFUX Series
- Product Series: AFUX
- Full Technical Description: Conveyor Control Switch, Type Double End, Pull Cord, Operator Type Flag Arm, Voltage Rating 125/250/480 VAC, 125/250 VDC, Current Rating 20 Ampere at 125/250/480 VAC, 10 Ampere at 125 VAC, 0.5 Ampere at 125 VDC, 0.25 Ampere at 250 VDC, Contact
- Illuminated: No
- Selector Type: Lever
- Total Number of Devices: 2
- Number of Pushbuttons: 0
- Number of Selector Switches: 2
- Number of Pilot Lights: 0
- Enclosure: Feed-Thru
- Approvals: UL
- Comments: 25 lbs Pull Force, For Use in Hazardous Locations
- Net Weight: 15.45 lbs
- Gross Weight: 15.45 lbs
