Appleton afux033350

Overview

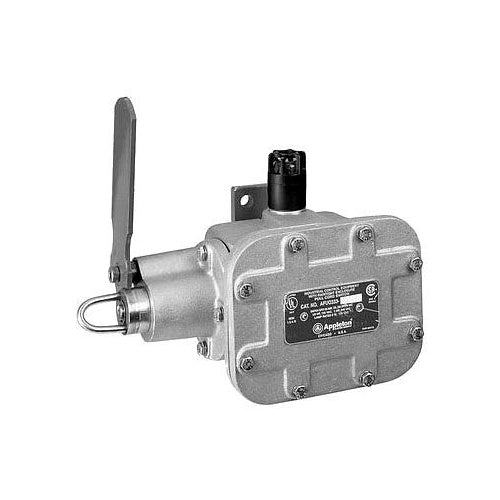

AFUX033350 Left Hand Single End Conveyor Control Switch, 600 V AC/250 V DC, 15/0.4 A, 2NO-2NC Contact

Product Specifications

• Catalog Number: AFUX033350
• UPC / GTIN: 781381741149
• Manufacturer Brand: Appleton®
• UNSPSC: 39122239
• Features: Rugged torsion spring for positive actuation of flag arm; Stainless steel bushing may be easily reversed to increase or decrease actuation force; Maximum distance between switches should not exceed 61 m; Two 1 in conduit openings (top and bottom); Emergency stop or normal stop switch for conveyor lines, cranes, unloaders, bulk handling systems; Steel with red epoxy paint flag arm; Stainless steel actuator shaft, retaining ring, clevis loop and torsion springs; Peened enclosure
• Amperage Rating: 15/0.4 A
• Contact Configuration: 2NO-2NC | NO/NC-DB/TCDB
• Contact Rating: 15 A at 120/240/480/600 V AC/0.8 A at 115 V DC/0.4 A at 230 V DC | 15 A at 120/240/480/600 VAC/0.8 A at 115 VDC/0.4 A at 230 VDC
• Country of Origin: United States of America | United States of America (the)
• Dimensions: 7.88 in W x 9.75 in H
• Enclosure: NEMA 7C/7D/9E/9F/9G
• Environmental Conditions: -40 to 66 deg C Temperature
• Indicator: Flag Arm
• Material: Aluminum
• Series: AFUX
• Type: Left Hand Single End
• Voltage Rating: 600 V AC/250 V DC | 600 VAC/250 VDC
