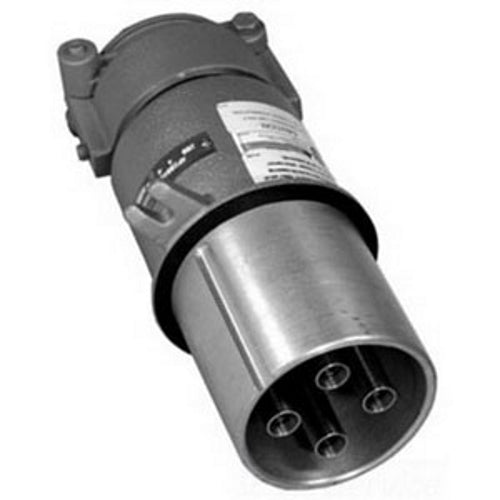

Appleton AP20023CD 200 Amp Grounding Style 2 Male Plug, 3-Pole, 2-Wire, Heavy-Duty Industrial Plug for ADR20023 Receptacle

Overview

Appleton AP20023CD 200 Amp Grounding Style 2 Male Plug, 3-Pole, 2-Wire, Heavy-Duty Industrial Plug for ADR20023 Receptacle

Product Specifications

• Brand: Appleton
• Sub-Brand: Powertite™
• Manufacturer: Appleton Electric
• Manufacturer Part Number (MPN): AP20023CD
• Catalog Number: AP20023CD
• UPC: 78138144753
• Product Type: Grounding Style 2 Male Plug
• Amperage Rating: 200 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Number of Wires: 2
• Conductor Size: 2/0 AWG – 250 kcmil
• Wire Size: 00 AWG – 250 kcmil
• Grounding: Yes
• Material: Aluminum
• Terminal Connection Type: Pressure Wire Terminal
• Temperature Rating: -40 to 107 °C
• Standards/Approvals: CSA, UL, E2186
• Application: For use with ADR20023 Receptacle and ARC20023CD Connector Body
• Category: Electrical Products
• Sub-Category: Plug / Connector
• Full Technical Description: Appleton AP20023CD is a 200A, 3-pole, 2-wire, grounding-style 2-male plug constructed from durable aluminum. Designed for industrial power connections, it supports 600 VAC / 250 VDC and is compatible with ADR20023 receptacles and ARC20023CD connector bodies. Features pressure-wire terminal connections and operates at temperatures ranging from -40 to 107 °C. Certified to CSA and UL standards.
