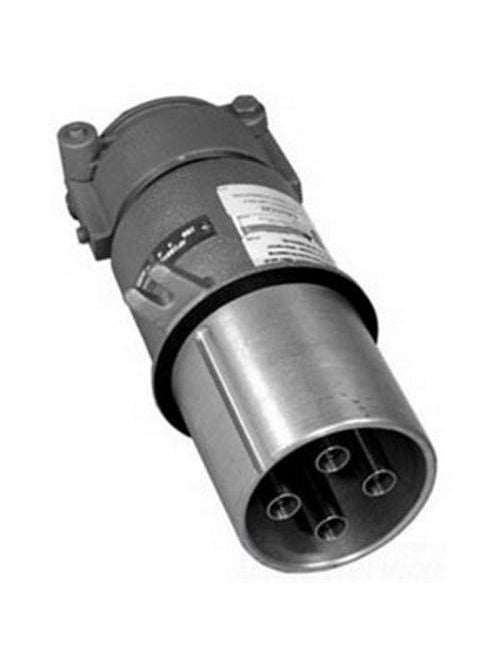

Appleton AP20034CD 200 Amp Grounding Style 2 Plug, 4-Pole, 3-Wire, Heavy-Duty Industrial Plug

Overview

Appleton AP20034CD 200 Amp Grounding Style 2 Plug, 4-Pole, 3-Wire, Heavy-Duty Industrial Plug for Portable and Fixed Electrical Equipment

Product Specifications

• Brand: Appleton
• Sub-Brand: Powertite™
• Manufacturer: Appleton Electric
• Manufacturer Part Number (MPN): AP20034CD
• Catalog Number: AP20034CD
• UPC: 78138144754
• Product Type: Grounding Style 2 Plug
• Amperage Rating: 200 A
• Voltage Rating: 600 VAC at 50–400 Hz / 250 VDC
• Number of Poles: 4
• Number of Wires: 3
• Conductor Size: 2/0 AWG – 250 kcmil
• Wire Size: 00 AWG – 250 kcmil
• Material: Aluminum
• Terminal Connection Type: Pressure Wire Terminal
• Temperature Rating: -40 to 107 °C
• Standards/Approvals: CSA, UL, E2186
• Applications: Designed to supply power to portable or fixed electrical equipment including motor generator units, welders, pumps, compressors, cellular relay stations, and similar apparatus
• Category: Electrical Products
• Sub-Category: Plug / Connector
• Full Technical Description: Appleton AP20034CD is a heavy-duty 200A, 4-pole, 3-wire, grounding-style 2-plug constructed from aluminum for industrial use. Rated for 600 VAC / 250 VDC, it supports conductor sizes from 2/0 AWG to 250 kcmil and wire sizes 00 AWG to 250 kcmil. Features pressure wire terminals, operates in temperatures from -40 to 107 °C, and meets CSA, UL, and E2186 standards. Ideal for portable and fixed equipment such as motor generators, welders, pumps, and compressors.
