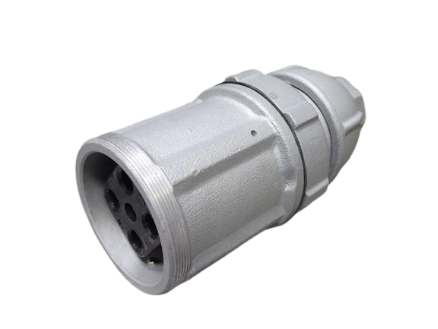

Appleton APR6462 AE Series 60A Style 2 Connector Body, 4-Pole, 3-Wire

Product Specifications

• Catalog Description: AE Series Grounding Style 2 Connector Body, 60 Amp, 600VAC/250VDC, 4-Pole, 3-Wire, Copper-Free Aluminum
• Category: Plugs & Receptacles
• Full Technical Description: AE Series Grounding Style 2 Connector Body; Catalog Number APR6462; 60 Ampere Current Rating; 600 VAC and 250 VDC Voltage Rating; 4-Pole, 3-Wire Configuration; Wire Range 8 to 4 AWG; Pressure-Wire Terminal Connection; Copper-Free Aluminum Construction with Maximum Copper Content of 0.4 Percent; Epoxy Powder Coated Finish; Designed for AEP6462 Clamping Ring Plug; Grounding Through Shell and Extra Pole; Grounding Strap Provided for Extra-Pole Grounding; Longer Ground Contact Makes First and Breaks Last; Solid Brass Contacts with Beryllium Copper Springs; Floating Plug Contacts Self-Align with Receptacle Contacts; Cable Clamps Help Reduce Cable Strain and Allow Easier Replacement; Clamping Ring Threads onto Compatible Screw-Cap Receptacle to Form a Raintight Assembly When Properly Tightened; Insulating Blocks Provide Dielectric and Mechanical Strength with Low Moisture Absorption and Arc Tracking; No Auxiliary or Pilot Contacts Listed; Complies with UL 1682 and UL 1686
• Manufacturer: Appleton Electric Company
• Manufacturer Brand: Appleton
• Sub Category: Grounding Style 2 Connector Body
• UPC 12 Digit: 781381103343
• SKU Name: Appleton APR6462
