Appleton ar40123

Overview

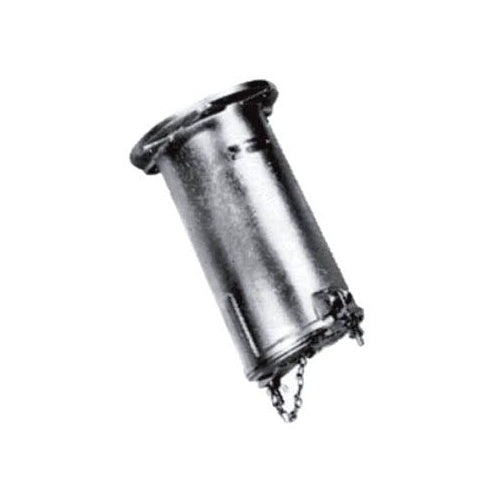

Appleton AR40123 400A Receptacle 3P 1.25

Product Specifications

• Part Number: AR40123
• UPC / GTIN: 78138129648
• UPC: 78138129648
• Grounding Style: 2, SHELL, EXTRA POLE
• Door Type: CLAMP COVER
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Grade: SHIPPING
• Additional Information: CONTACT MATERIAL COPPER
• Brand Name: Powertite.
• Type: POLARIZED
• Constructional Feature: RAIN TIGHT
• Voltage Rating: 600 VAC 1 PHASE, 250 VDC
• Current Rating: 400 AMPERE
• Number of Poles: 3
• Number of Wires: 2
• CATALOG DESCRIPTION: PIN AND SLEEVE RECEPTACLE, TYPE POLARIZED, CONSTRUCTIONAL FEATURE WEATHERPROOF, WATER RESISTANT, VOLTAGE RATING 600 VAC AT 50 TO 400 HZ, 250 VDC, CURRENT RATING 400 AMPERE, NUMBER OF POLES 3, NUMBER OF WIRES 2, GROUNDING STYLE 2, SHELL, EXTRA POLE, DOOR TYPE CLAMP COVER, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM, GRADE SHIPPING, APPROVAL UL1682/1686/50E, CSA C22.2, WIRE SIZE 400 TO 1000 MCM
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 1682, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 3 Pole(S); Weatherproof; Clamp Cover; 2, Shell, Extra Pole Grounding Style; POWERTITE[TM] Brand; Wire Size 400 MCM to 1000 MCM; Wire Recess Diameter 1.25 Inch; Enclosure Rating NEMA 4; Ambient Temperature Rating -13 to 104 Deg F; Application Generator, Shipping Dock, Port; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Product Description: Appleton AR40123 400A Receptacle 3P 1.25
• UNSPSC: 39121406
• UPC 12 Digit: 781381296489
