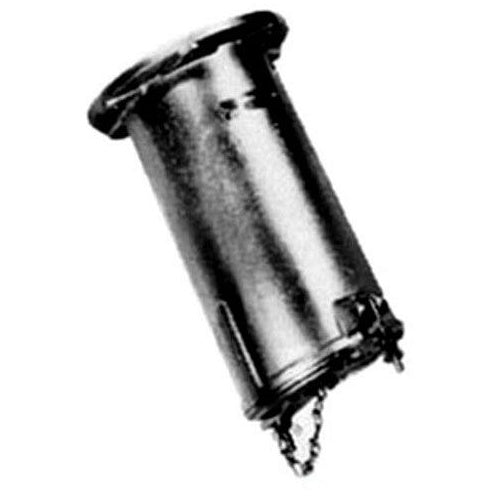

Appleton AR40133 400A Receptacle 3P 1.25

Product Specifications

• Part Number: AR40133
• UPC: 78138129649
• UPC: 781381296496
• Grounding Style: 1, SHELL
• Door Type: CLAMP COVER
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Grade: SHIPPING
• Additional Information: CONTACT MATERIAL COPPER
• Brand Name: Powertite.
• Type: POLARIZED
• Constructional Feature: RAIN TIGHT
• Voltage Rating: 600 VAC 3 PHASE, 250 VDC
• Current Rating: 400 AMPERE
• Number of Poles: 3
• Number of Wires: 3
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); UL 1682, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 3 Pole(S); Weatherproof; Clamp Cover; 1, Shell Grounding Style; Wire Size 400 MCM to 1000 MCM; Wire Recess Diameter 1.25 Inch; Enclosure Rating NEMA 4; Ambient Temperature Rating -13 to 104 Deg F; Application Generator, Shipping Dock, Port; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• UNSPSC: 39121406
