Overview

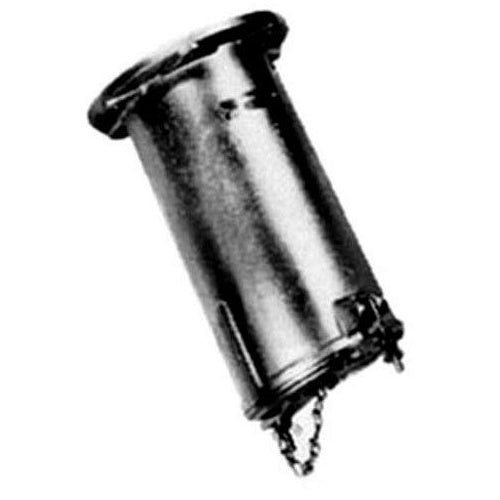

Powertite® AR40134 3-Phase Grounding Style 2 Pin and Sleeve Receptacle, 600 V AC/250 V DC, 400 A, 4 Poles, 3 Wires

Product Specifications

• Catalog Number: AR40134
• UPC: 781381296519
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing; Locking screw and slot prevents plug cable collar from "backing off"; Contacts exert constant pressure along entire contact surface and provide electrical continuity; Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking; Controlled length contacts ensure that ground makes first and breaks last for added safety
• Amperage Rating: 400 A
• Country of Origin: Mexico
• Dimensions: 12-1/4 in H x 7-3/4 in W
• Frequency Rating: 50/400 Hz
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R
• Number of Poles: 4
• Number of Wires: 3
• Series: AR Series
• Temperature Rating: -40 to 225 deg F
• Terminal Type: Solder Wire
• Type: 3-Phase Grounding Style 2
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
