Appleton arc40034e

Overview

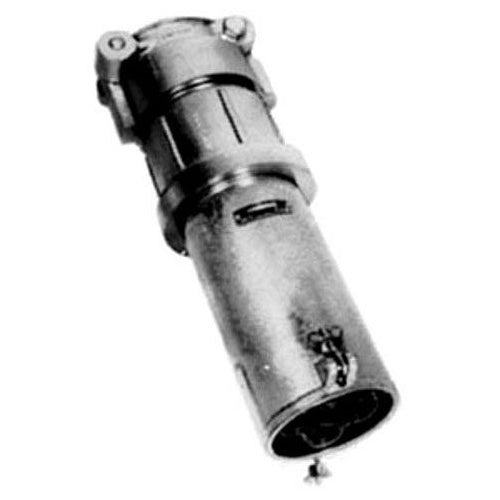

Appleton ARC40034E 400A 3W4P Connector Body

Product Specifications

• Part Number: ARC40034E
• UPC / GTIN: 78138129673
• UPC: 78138129673
• Grounding Style: 2, SHELL, EXTRA POLE
• Minimum Cable Outer Diameter: 1.875 INCH
• Maximum Cable Outer Diameter: 2.5 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: AREA OF APPLICATION SHIPPING; CONTACT MATERIAL COPPER
• Brand Name: Powertite[R]
• Type: COMPRESSOR, MOTOR GENERATOR UNIT, POLARIZED, PUMP, WELDING
• Constructional Feature: WEATHER PROOF
• Voltage Rating: 600 VAC AT 50 TO 400 HZ/250 VDC
• Current Rating: 400 AMPERE
• Number of Poles: 4
• Number of Wires: 3
• CATALOG DESCRIPTION: POWERTITE GROUNDING STYLE 2 CONNECTOR BODY, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 400 - 1000 MCM, AMPERAGE RATING: 400 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMI
• Full Technical Description: Positive Polarization, Circuit Breaking, Compressor, Motor Generator Unit, Pump, Welder, Cellular Relay Station Type; Epoxy Powder Coated Copper-Free Aluminum Material; 1.875 Inch min. Cable Outer Diameter; 2.5 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 4 Pole(S); Weatherproof; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.84 Inch; Contact Material Copper; Insulating Block Material Fiberglass Reinforced Polyester; Enclosure Rating NEMA 4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Product Description: Appleton ARC40034E 400A 3W4P Connector Body
• UNSPSC: 39121406
• UPC 12 Digit: 781381296731
