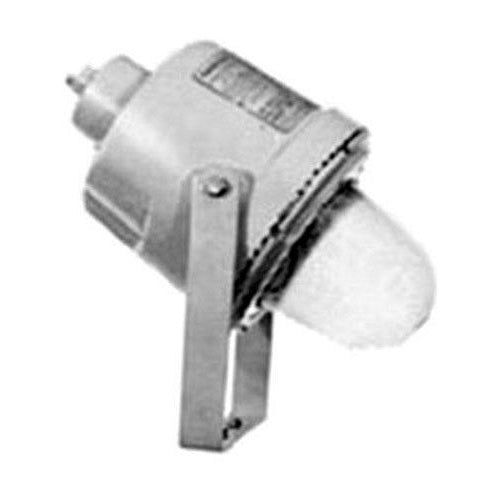

APPLETON ELECTRIC CFP400MT Led Floodlight, 400W

Product Specifications

• Full Technical Description: Led Floodlight, 400W | BJ8ZTP
• Catalog Number: CFP400MT
• Manufacturer: APPLETON ELECTRIC
• Height: 41.35 cm
• Length: 32.87 cm
• Width: 12.83 cm
• Country Of Origin: US
• Weight: 0.333 kg
• Application: Marine
• Approvals: csa.png, ul.png
• Ballast Housing Material: Epoxy Clad Finished Copper Free Aluminum
• Ballast Type: Multi Tap
• Constructional Feature: Corrosion Resistant, Explosion Proof
• Enclosure: Class I Div 1 And 2 Group C D
• Epa: 1.8 sq. ft.
• Family Series: Appleton Light Fixtures Series, CM 2 Hid Floodlight Series
• Gear Material: Heat And Impact Resistant Glass
• Globe Material: Heat And Impact Resistant Glass
• Guard Material: Epoxy Clad Finished Copper Free Aluminum
• Guarded: No
• Hub Size: 3/4"
• Junction Box: No
• Lamp Base: Mogul
• Lamp Type: Pulse Start Metal Halide
• Lamp Watts: 400 W
• Lamp/ballast Voltage: 120/208/240/277V
• Lens Material: Glass
• Marine Rated: Yes
• Mounting: Ceiling, Wall , Trunnion
• Mounting Hardware Material: Epoxy Clad Finished Steel Trunnion
• Nema Rating: NEMA 4X
• Nominal Voltage: 120/208/240/277V AC
• Power: 400 W
• Product Series: CM 2 HID Floodlight Series
• Series: Cm 2 Hid Floodlight Series
• Style: Flood
• Thermal Performance: T3
• Type: Factory Sealed Fixture With Integral Ballast
• Voltage: 120/240/208/277V AC
• Wet Locations: Yes
