Appleton cssc75250dcgr

Overview

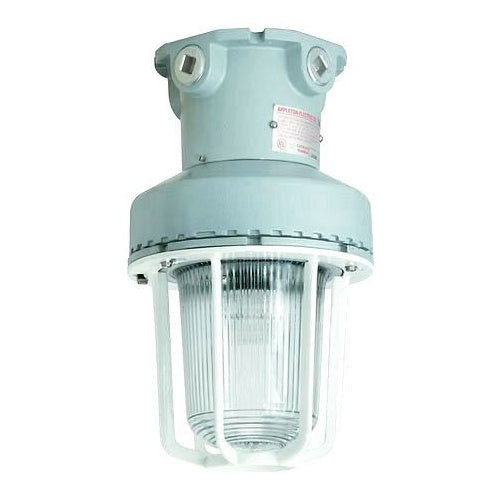

APPLETON ELECTRIC CSSC75250DCGR Hazardous Lighting Fixture, Ceiling Mounting, 250Vdc

Product Specifications

• Catalog Number: CSSC75250DCGR
• UPC / GTIN: 781381860291
• Manufacturer: APPLETON ELECTRIC
• Application: Marine/Wet Locations
• Approvals: ul.png
• Construction Features: Dust-Ignitionproof, Explosionproof
• Hazardous Location Classification: Class I, Divisions 1 And 2, Groups C And D; Class I, Division 2, Groups A And B; Class II, Divisions 1 And 2, Groups E, F And G; Class III; NEMA 3R/4X
• Enclosure Finish: Electrostatically Applied Epoxy Powder Coat
• Enclosure Material: Copper-Free Aluminum
• Family Series: Appleton Light Fixtures Series, Code Master Strobe Series
• Fixture Material: Aluminum
• Flash Rate: 65 FPM
• Gasketed: No
• Guarded: No
• Hub Size: 3 / 4 "
• Lamp Base: Octal
• Lamp Included: Yes
• Lamp Type: Strobe
• Lens Color: Green
• Lens Material: Prismatic Glass
• Marine Rated: Yes
• Mounting: Ceiling
• Nema Rating: NEMA 3R, NEMA 4X
• Number Of Hubs: 4
• Number Of Plugs: 3
• Nominal Voltage: 250V DC
• Operating Voltage: 250V DC
• Product Data Sheet: appleton-electric-cssb75120acbl.pdf
• Product Series: Code Master Strobe Series
• Series: Code Master Strobe Series
• Dimensions: 7.8 Inch W x 13.38 Inch H
• Style: Globe
• Type: Strobe Light
• Voltage: 250V DC
• Wet Locations: Yes
• Country Of Origin: US
• Height: 24.13 cm
• Length: 35.56 cm
• Width: 29.21 cm
• Weight: 0.4815 kg
• UPC: 781381860291
