Overview

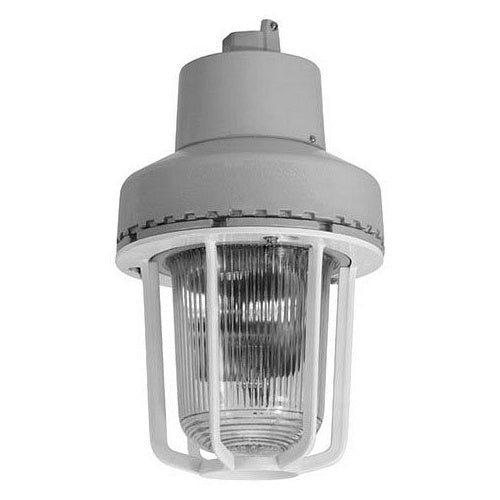

APPLETON ELECTRIC CSSP75120ACREG Hazardous Lighting Fixture, Pendant Mounting, 120V

Product Specifications

• Full Technical Description: Hazardous Lighting Fixture, Pendant Mounting, 120V | BJ9FUM
• Catalog Number: CSSP75120ACREG
• Manufacturer: APPLETON ELECTRIC
• Height: 24.13 cm
• Length: 35.56 cm
• Width: 29.21 cm
• Country Of Origin: US
• Weight: 0.4815 kg
• Application: Marine And Wet Location
• Approvals: ul.png
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Enclosure: Class I Div 1 And 2 Group C D, Class I Div 2 Group A B, Class II Div 1 And 2 Group E F G, Class III, Nema 3R/4X
• Enclosure Finish: Electrostatically Applied Epoxy Powder Coated
• Enclosure Material: Copper Free Aluminum
• Family Series: Appleton Light Fixtures Series, Code Master Strobe Series
• Fixture Material: Aluminum
• Flash Rate: 65 FPM
• Gasketed: No
• Guarded: Yes
• Hub Size: 3/4"
• Lamp Base: Octal
• Lamp Included: Yes
• Lamp Type: Strobe
• Lens Color: Red
• Lens Material: Prismatic
• Marine Rated: Yes
• Mounting: Pendant
• Nema Rating: NEMA 3R, NEMA 4X
• No. Of Hubs: 1
• Nominal Voltage: 120V AC
• Operating Temp.: -25°C
• Operating Voltage: 120V AC
• Product Series: Code Master Strobe Series
• Series: Code Master Strobe Series
• Style: Globe
• Type: Strobe Light
• Voltage: 120V AC
• Wet Locations: Yes
