Overview

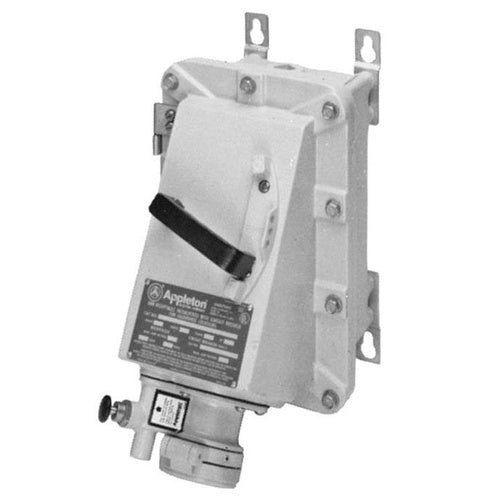

DBR1023EH100 Appleton Plugs & Receptacles, DBR Series, DBR 100A 2W 3P WEST EHB 100A

Product Specifications

• Full Technical Description: Plugs & Receptacles, DBR Series DBR 100A 2W 3P WEST EHB 100A DBR Series Information DBR 30, 60, 100 and 150 Amp Series Receptacles incorporate your choice of an interlocked circuit breaker or disconnect switch along with explosionproof and dust-ignitionproof protection. The interlocked circuit breaker provides connect and disconnect operating functions as well as short circuit and thermal time delay overload protection, safeguarding valuable equipment against expensive damage. The interlocked disconnect switch provides safe connection and disconnection.
• Catalog Number: DBR1023EH100
• Manufacturer: Appleton
• Product Series: DBR
• Family Series: Appleton Plugs & Receptacles, DBR Series
• Connection Type: Receptacle
• Connection Description: Non-Fusible
• Current Rating: 100 A
• Voltage: 600 V
• Number of Poles: 3
• Number of Wires: 2
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: Yes
• Material: Metallic
• NEMA Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 9
• Approvals: UL
• Comments: Explosionproof, Dust-Ignitionproof, 2 poles and 1 ground wire
• Net Weight: 0 lbs
• Gross Weight: 0 lbs
