Product information
Overview

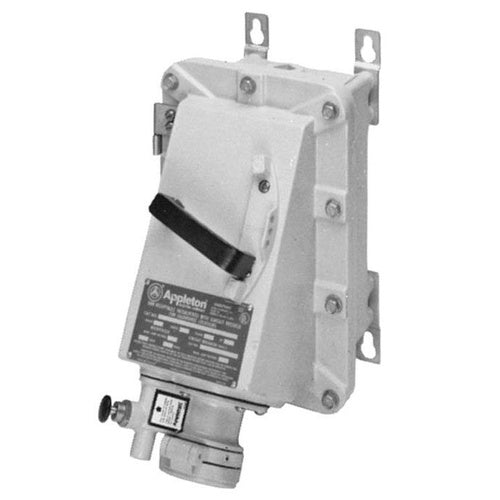

APPLETON ELECTRIC DBR1023EH70 Receptacle, 100A, 480V AC, 30hp, Metallic
Product Specifications
- Full Technical Description: Receptacle, 100A, 480V AC, 30hp, Metallic | AA4DNY | 12G233
- Catalog Number: DBR1023EH70
- Manufacturer: APPLETON ELECTRIC
- Height: 35.92 cm
- Length: 14.15 cm
- Width: 42.09 cm
- HS Code: 8536200040
- Country Of Origin: MX
- Weight: 0.6705 kg
- Model: 12G233
- Amps: 100A
- Circuit Breaker: Yes
- Circuit Breaker Amps: 70A
- Circuit Breaker Type: EHD 480V AC
- Disconnect Switch: No
- Enclosure Lock Type: Padlockable
- Finish: Epoxy Coating
- Handle Type: Knob
- Hazardous Location Specification: Class I, Div 1 And 2, Group B, C, D, Class Ii, Div 1 And 2, Group F, G, Class Iii, Div 1 And 2
- Housing Material: Copper Free Aluminum
- Hp: 30 hp
- Hub Dia.: 1 1/2"
- Hub Type: Feed Through
- Included Mounting Hardware: Yes
- Locking Handle: Yes
- Material: Copper Free Aluminum
- Mounting Box: Copperfree Aluminium
- Nema Enclosure Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 9FG
- Nema Rating: 3, 3R, 4, 4X, 9FG
- No. Of Gangs: 1
- No. Of Poles: 3
- No. Of Wires: 2
- Voltage: 480V AC , 600V AC
