Product information
Overview

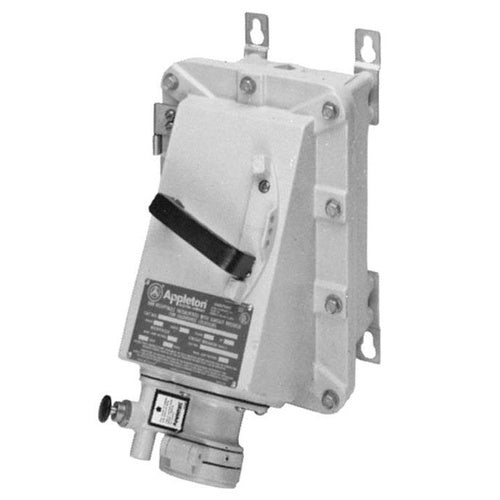

DBR1023HFB90 Appleton Plugs & Receptacles, DBR Series, DBR 100A 2W 3P WEST HFB 90A
Product Specifications
- Catalog Number: DBR1023HFB90
- Manufacturer: Appleton
- Product Series: DBR
- Family Series: Appleton Plugs & Receptacles, DBR Series
- Full Technical Description: Explosionproof Pin and Sleeve Receptacle and Circuit Breaker, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Voltage Rating 600 VAC, Breaker Current Rating 90 Ampere, Receptacle Voltage Rating 600 VAC, Receptacle Current Rating 100
- Connection Type: Receptacle
- Connection Description: Non-Fusible
- Current Rating: 100 A
- Voltage: 600 V
- Number of Poles: 3
- Number of Wires: 2
- Lockout-Tagout: No
- Auxiliary Contact: None
- Built-In Strain Relief: Yes
- Material: Metallic
- NEMA Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 9
- Approvals: UL
- Comments: Explosionproof, Dust-Ignitionproof, 2 poles and 1 ground wire
- Net Weight: 0 lbs
- Gross Weight: 0 lbs
