Overview

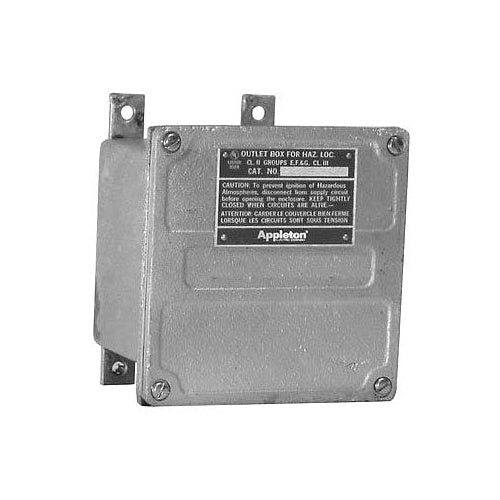

Appleton DTX181210 18X12X10 Iron Junction Box

Product Specifications

• Part Number: DTX181210
• UPC: 78138184395
• UPC: 781381843959
• Depth: 10-5/16 INCH
• Depth in inch: 10.3125
• Material: CAST IRON
• Finish: HOT DIP GALVANIZED
• Enclosure: NEMA 4/9EFG
• Mounting: LUGS, SURFACE
• Cover Type: GASKETED, BOLT ON
• Approval: UL 886
• Height in inch - UOM: in
• Width in inch - UOM: in
• Depth in inch - UOM: in
• Additional Information: APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL; CONSTRUCTIONAL FEATURE DUST IGNITION PROOF, WATER TIGHT
• Brand Name: Appleton.
• Model: DTX
• Type: FLANGED
• Height: 20-5/8 INCH
• Height in inch: 20.625
• Width: 14-5/8 INCH
• Width in inch: 14.625
• Full Technical Description: 20.63 Inch Length X 14.63 Inch Width X 10.63 Inch Depth Overall Size; 18 Inch Length X 12 Inch Width X 10 Inch Depth Inner Size; 2 Inch Hub Size; UL 886 Approval; Surface Mounting; Class II Div 1 and 2 Group E F G, Class III, NEMA 4/9FG Enclosure; Gasketed Cover Type; Cast Iron Body Material; Cast Iron Cover Material; 0.31 Inch Wall Thickness; Hot Dip Galvanized Body Finish; 18 Inch Cover Opening Diameter; Hot Dip Galvanized Cover Finish; Constructional Feature Dust Ignitionproof, Water Tight; Application Grain Elevator, Grain Storage Area, Paper Mill, Coal Storage Facility, Textile Factory; Applicable Standard Nec/Cec; DTX Model
• Manufacturer: Appleton Electric
• UNSPSC: 39121314
