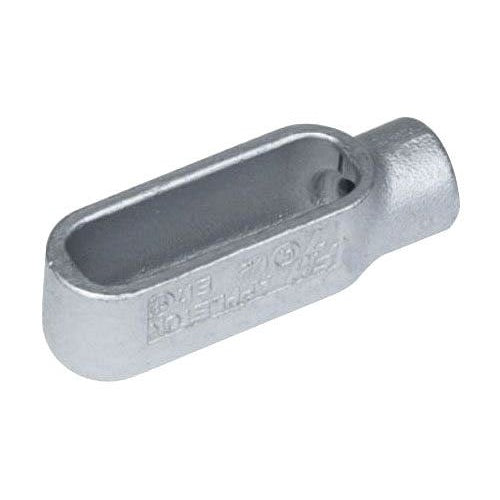

APPLETON E125M Appleton E125-M 1-1/4" Malleable Type E Conduit Body

Overview

APPLETON E125M Appleton E125-M 1-1/4" Malleable Type E Conduit Body

Product Specifications

• Catalog Description: Form 35 Type E Conduit Body; 1-1/4 Inch Hub Size; Malleable Iron Body; Threaded Installation; Side Access Opening; Cover and Gasket Included.
• Category: LBD/MOGUL
• Full Technical Description: Type E Conduit Body; Form 35; E Configuration; 1 Hub; 1-1/4 Inch Hub Size; Straight Hub Location; Side Access Opening; Threaded Installation; 8.19 Inch Length; Zinc Electroplated, Chromate, and Epoxy Powder Coated Malleable Iron Body; Matching Malleable Iron Cover; Fiber/Neoprene Gasket; Stainless Steel Cover Screw; Designed for IMC and Rigid Conduit; Wire Capacity (3) 2 AWG; Internal Capacity 29.3 Cubic Inches; UL 514A and UL 514B Approved; UL File Number E2527; CSA C22.2 Approved; Applicable Standards NEC, CEC, and NEMA FB-1; Enclosure Rating Class I Division 2; Suitable for Commercial, Industrial, and Hazardous-Location Applications; Used for Conductor Pulling, Conduit Bends, Splicing, Branch Connections, Direction Changes, and Maintenance Access
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Type E Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381705820
• SKU Name: APPLETON E125M

Resources

Manufacturer Specification Sheet
