Overview

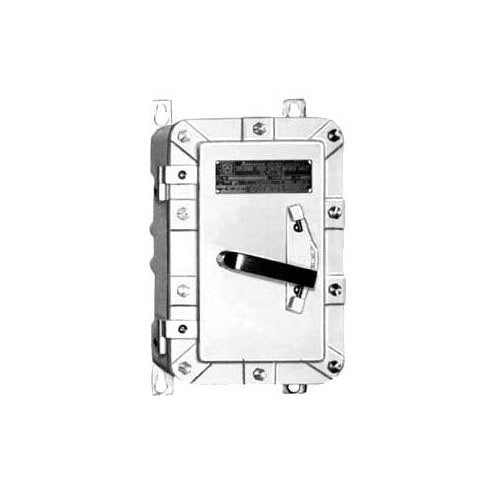

APPLETON ELECTRIC EB1F2W40 Enclosed Circuit Breaker, 40A

Product Specifications

• Full Technical Description: Enclosed Circuit Breaker, 40A | BJ9GJB
• Catalog Number: EB1F2W40
• Manufacturer: APPLETON ELECTRIC
• Height: 12.7 cm
• Length: 7.62 cm
• Width: 6.35 cm
• Country Of Origin: US
• Weight: 0.045 kg
• Amps: 40A
• Approvals: ul.png
• Breaker Type: FDB, Cutler Hammer/Westing House , FDB, Cutler Hammer/Westinghouse
• Constructional Feature: Dust Ignition Proof, Explosion Proof
• Dc Voltage: 250V DC
• Enclosure: Nema 3R/7B/7C/7D/9E/9F/9G, Class I Div 1 And 2 Group B C D, Class II Div 1 And 2 Group E F G, Class Iii
• Enclosure Composition: Metallic
• Enclosure Finish: 2 Coat Epoxy Enamel
• Enclosure Material: Copper Free Aluminum
• Family Series: Appleton Disconnect Switches Series
• Hub Location: Feed Through
• Mounting: Wall
• Nema Rating: NEMA 3R, NEMA 4X
• No. Of Poles: 2
• Operator Type: 2 , External Handle
• Shaft/handle Material: Passivated Stainless Steel
• Trip Type: Thermal Magnetic
• Type: Bolted Enclosure
• Ul Class: UL1203
• Voltage: 600V AC @ 60 Hz, 250V DC , 600V AC At 60 Hz/250V DC
