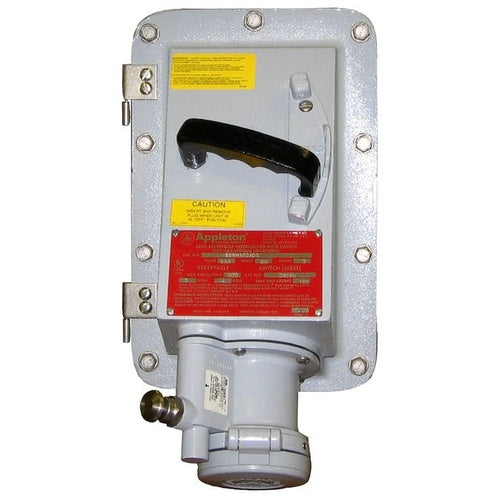

Appleton EBRH6023DS 60A 2W3P Disconnect Switch

Product Specifications

• Catalog Number: EBRH6023DS
• UPC: 781381522878
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); 600 Volt AC, 250 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7CD/9FG Enclosure; 60 Amp Current Rating; 3 Pole(S); Explosionproof, Dust Ignitionproof; (1) 1-1/2 Inch Top and (2) 1-1/2 Inch Bottom Hub Type; Non-Fusible Fuse Provision; Weatherproof Spring; 2, Shell, Extra Pole Grounding Style; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec, UL 1010/1203/894/1682; EBRH Mo
• Manufacturer: Appleton Electric
• UNSPSC: 39121406
