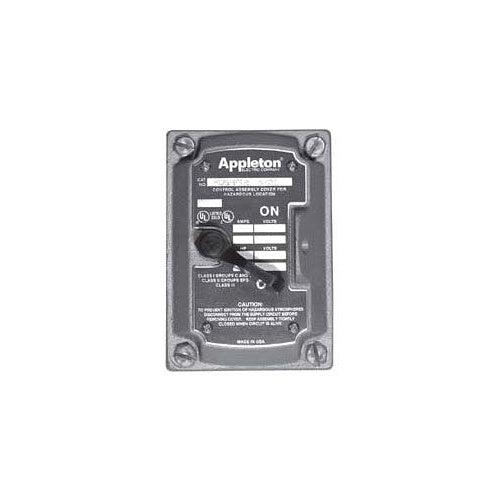

Appleton EDSF23WQ Cover Chamber Switch -3W 20A

Product Specifications

• Part Number: EDSF23WQ
• UPC: 78138170958
• UPC: 781381709583
• Enclosure Material: Malleable Iron
• Enclosure: NEMA 7BCD/9EFG, Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 894/1203
• Additional Information: Applicable Standard NEC/CEC
• Model: EDS
• Constructional Feature: Explosionproof, Dust Ignitionproof, Rain Tight, Wet Location
• Voltage Rating: 120 to 277 Volt AC
• Current Rating: 20 Amp
• Contact Configuration: 3-Way
• Operator Type: Front Operated
• Box Type: 1-Gang
• Full Technical Description: Cover Assembly Type; Contender Front Operated Tumbler Switch Used on; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Switch Type 3-Way; Voltage Rating 120/277 Volt AC; Current Rating 20 Amp; Power Rating 1 HP at 120 Volt Ac/2 HP at 240 Volt AC; Material Malleable Iron; Includes Internal Ground Screw, Switch; Applicable Standard Nec/Cec, UL 894/1203, UL (Canada and Us)
• Manufacturer: Appleton Electric
• UNSPSC: 39121565
