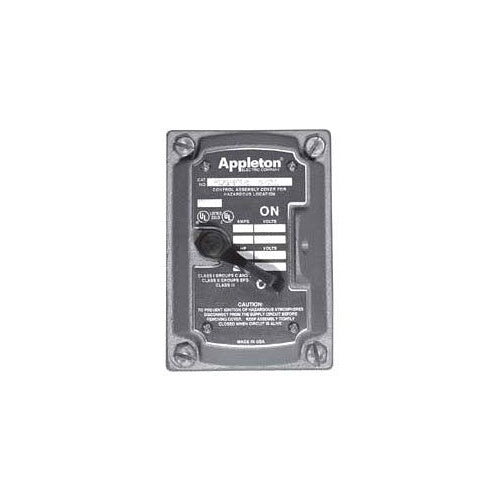

Appleton EDSF31Q Cover Chamber Switch -1P-30A

Overview

Appleton EDSF31Q Cover Chamber Switch -1P-30A

Product Specifications

• UPC: 78138170961
• Catalog Number: EDSF31Q
• Brand Name: Contender[TM]
• Model: EDS
• Type: Front Cover
• Used On: Tumbler Switch
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Enclosure: NEMA 3, Class I Div 1 Group C D, Class II Div 2 Group C D, Class 3 Div 1 and 2 Group E F G, Class III
• Additional Information: Voltage Rating 120 to 277 Volt AC; Current Rating 30 Amp; Number of Poles 1; Material Zinc Electroplate Chromate Epoxy Powder Coated Malleable Iron; Includes Internal Ground Screw; Approval UL, CSA C22.2; Applicable Standard NEC/CEC
• Catalog Description: CONTENDER FRONT OPERATED SWITCH ASSEMBLY, VOLTAGE RATING: 120 - 277 VAC, AMPERAGE RATING: 30 AMP, NUMBER OF POLES: 1, MATERIAL: MALLEABLE IRON, STANDARD: UL 894, 1203, UL FILE NUMBER E10523, E81751, CLASS I, DIVISION 1, GROUPS C, D, CLASS I, DIVISION 2, GROUP B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, FOR TUMBLER SWITCHES
• Category: Selector Switch Complete Assemblies
• Full Technical Description: Cover Assembly Type; Contender Front Operated Tumbler Switch Used on; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Switch Type 1-Pole; Voltage Rating 120/277 Volt AC; Current Rating 30 Amp; Power Rating 2 HP at 120/240 Volt AC; Material Malleable Iron; Includes Internal Ground Screw, Sealing Chamber; Applicable Standard Nec/Cec, UL 894/1203, UL (Canada and Us)
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Switch Accessories
• Unspsc: 39121565
• UPC 12 Digit: 781381709613
• SKU Name: appleton edsf31q
