Overview

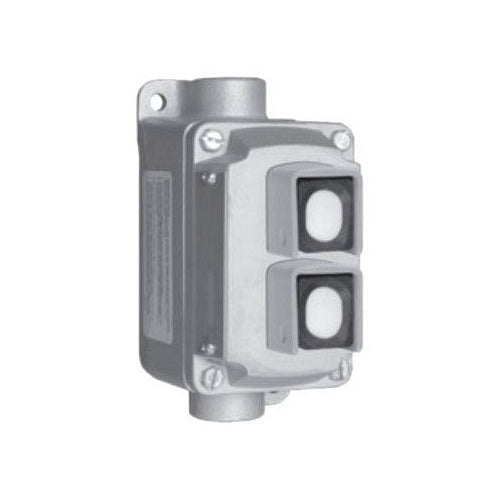

EFDB150U2 2-Gang 2-Circuit Dead End Pushbutton Control Station, 600 V AC, 10 A, 1NO-1NC Contact, 2 Operators, NEMA 3/7CD/9EFG NEMA Rating

Product Specifications

• Catalog Number: EFDB150U2
• UPC: 781381701174
• Manufacturer Brand: Appleton®
• UNSPSC: 39121565
• Features: Eliminate need for adding sealing fittings and compound at each conduit entrance; Dozens of possible combinations of push buttons, selector switches and pilot lights; Smooth, rounded integral bushing in each EFD/EFDB hub protects conductor insulation; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation; Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements; Assures positive contact and long, trouble free operation; Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations; Pushbutton models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered; Corrosion resistant captive stainless steel hex head cap screws hold EFKB covers to body
• Amperage Rating: 10 A
• Connection Type: Thread
• Contact Configuration: 1NC-1NO | 1NO-1NC
• Contact Mode: Momentary
• Country of Origin: Mexico
• Dimensions: 4.63 in H x 3 in W x 4.69 in D
• Finish: Triple Coated
• Legend: STOP/START
• Material: Malleable Iron
• Mounting Type: Surface
• NEMA Rating: NEMA 3/7CD/9EFG
• Number of Operators: 2
• Operator Type: Front Button
• Series: EFDB
• Type: 2-Gang 2-Circuit Dead End
• Voltage Rating: 600 V AC | 600 VAC
