Overview

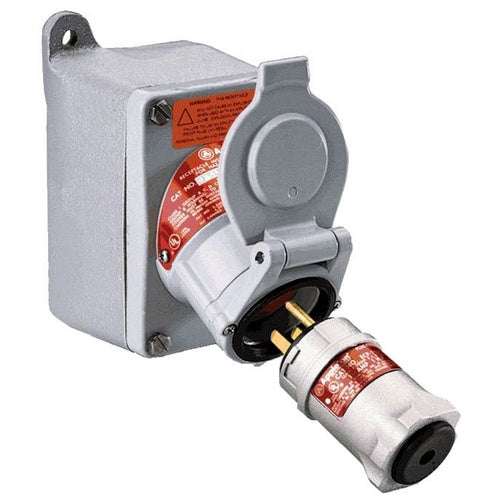

U-Line™ EFSC210-20232 2-Gang Dust-Ignitionproof Feed Through Explosionproof Receptacle, 250 V AC, 20 A, 3 Poles, 2 Wires

Product Specifications

• Catalog Number: EFSC21020232
• UPC: 781381167772
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; Glass filled reinforced polyester insulating blocks; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line™ explosionproof receptacles; Intermateable with competitor's plugs of like configurations
• Amperage Rating: 20 A
• Country of Origin: Mexico
• Dimensions: 5.63 in H x 6.19 in W x 5.64 in D
• Horsepower: 2 hp
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R
• Number of Poles: 3
• Number of Wires: 2
• Series: EFSC
• Type: 2-Gang Dust-Ignitionproof Feed Through
• Voltage Rating: 250 V AC | 250 VAC
